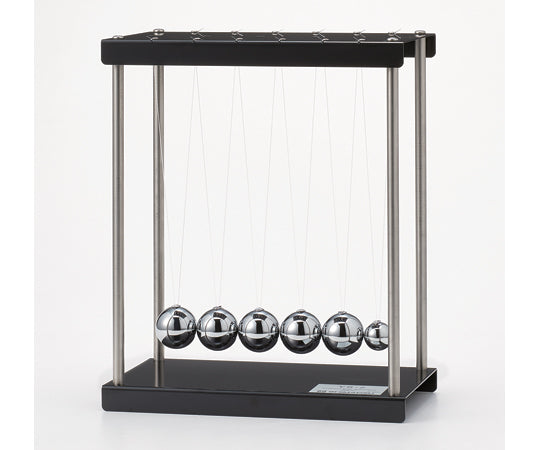

Collision ball YS-2B 121-753 1 unit
Collision ball YS-2B 121-753 1 unit
Regular price
¥76,560
Regular price
Sale price
¥76,560
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

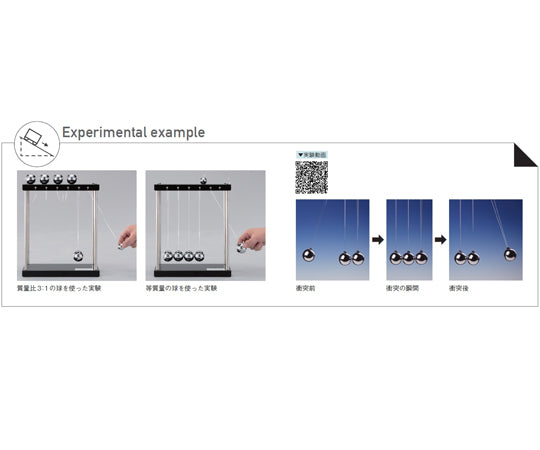

The set includes balls with different masses, such as a mass ratio of 3:1, so you can also use it for applied experiments.
You can conduct experiments using balls of equal mass to prove the law of conservation of momentum, elastic collisions of balls, and velocity exchange.
The set also includes one ball with a mass that is approximately 1/3 that of the original, so you can observe that the speeds after collision are equal and that they rise to the same height, which are characteristics of a centripetal collision between balls with a mass ratio of 3:1.
Balls not used in the experiment can be placed in the holes on the top plate. Metal balls
5 large pieces (φ38.1mm, weight approx. 230g)
1 small (φ25.4mm, weight approx. 70g)
Frame: Metal, W270×D150×H325mm
Product code: 121-753
