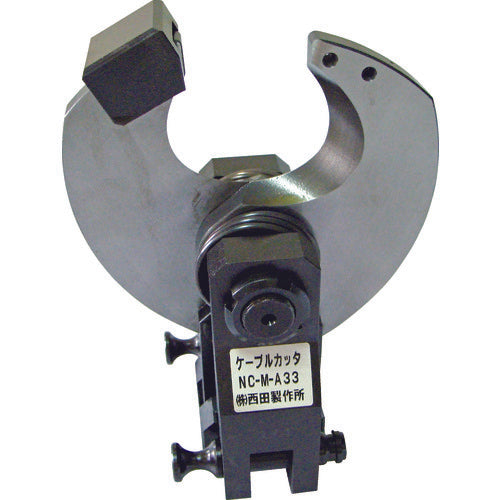

Nishida Cable Cutter Head NC-M-A33 1 piece

Catalog number: NC-M-A33 Features: ● Uses a crab-claw system that is easy to work with. ● Can be used for multi-power tool charging, electric, and hydraulic pumps. Specifications: ● Width (mm): 113 ● Depth (mm): 83 ● Height (mm): 167 ● Compatible main body: Lilium, Auxy, Arbile, Abel ● Capacity (kg): 6600V-CV → 150 [MM2] Single core (up to φ29) ● Capacity: 6600V-CV → 150 [MM2] Single core (up to φ29) ● Capacity: 600V-CV → 325 [MM 2] Single core (up to φ31), 60 [MM2] 3 core (up to φ31) ● Capacity: 600V-CVT → 60 [MM2] 3 core (up to φ33) ● Capacity: 600V-IV → 400 [MM2] 3 core (up to φ31) ● Capacity: 600V-VVR → 38 [MM2] 3 core (up to φ28) ● Capacity: 6600V-CV → 150 [MM2] Single core (up to φ29) Set contents / accessories: ● Steel case Caution: ● 6600V-CVT is not possible because the outer diameter is φ38 or more. ● Do not work on live wires as it is dangerous. ● Cannot cut special electric wires such as soft copper, aluminum twisted wire, ACSR wire, and iron wire (piano wire). ● If you cut an inapplicable electric wire with a stranded wire diameter of φ1mm or less, it may not be cut completely.
