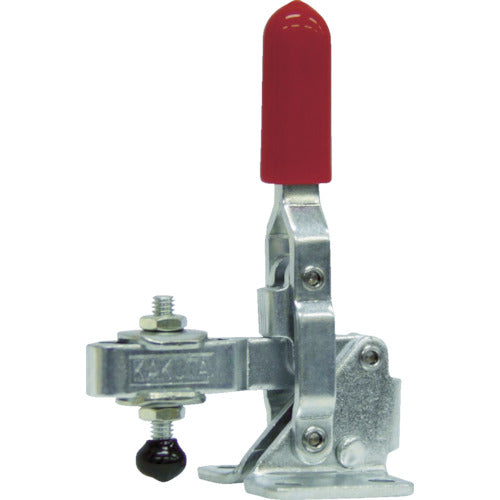

Kakuta Stainless Steel Handle Vertical Toggle Clamp No. HV150-2S KC-HV150-2S 1 pc

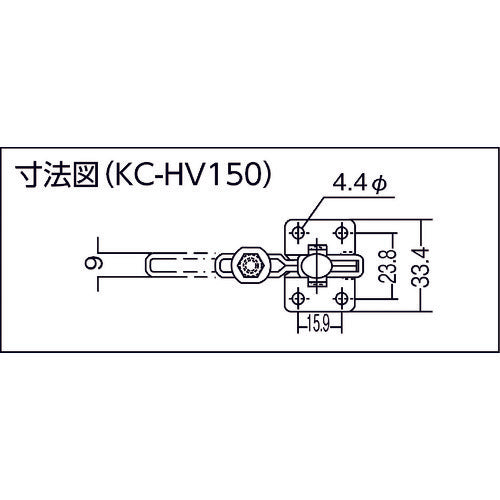

Catalog number: KC-HV150-2S Features: ●Stainless steel type of HV150. ●Stainless steel hexagonal BT included. Specifications: ●Total length (mm): 78 ●Tightening pressure (kN): 0.45 ●Included bolt diameter: M4×25 (hexagonal SUS bolt) ●Clamp arm movement angle (°): 105 ●Handle operation angle (°): 60 ●Product marking: HV150-2S ●Mounting pitch (mm): 15.9 ●Total height (mm): 77 ●Made of stainless steel ●Downward pressing type ●Vertical handle type ●Flange base Material/Finish: ●Stainless steel (SUS304) Set contents/Accessories: ●M4×25 hexagonal bolt ●2 nuts ●2 washers Caution: ●-2S is a hexagonal SUS bolt. ●The indicated tightening pressure is a guideline. ●The tightening pressure becomes weaker toward the tip of the clamp arm. ●Please note that impact, vibration, and internal pressure may cause damage. ●Be careful not to pinch your hand.
