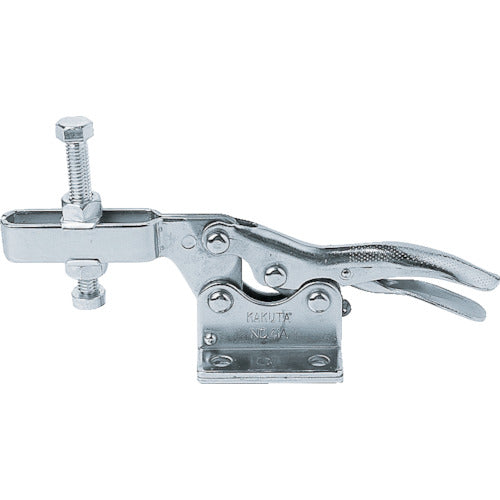

Kakuta Horizontal Handle Toggle Clamp No. 41A KC-41A 1 pc

Catalog number: KC-41A Features: ●Comes with a release lever. Specifications: ●Total length (mm): 213 ●Tightening force (kN): 2.5 ●Attached bolt diameter: M10 x 75 ●Clamp arm movement angle (°): 71 ●Handle operation angle (°): 50 ●Product marking: No. 41A ●Downward pressure type ●Horizontal handle type ●Flange base Material/Finish: ●Steel (SPCC) Caution: ●The indicated tightening force is a guideline. ●The tightening force becomes weaker towards the tip of the clamp arm. ●Please note that impact and internal vibration pressure may cause damage. ●Be careful not to get your hand caught.
