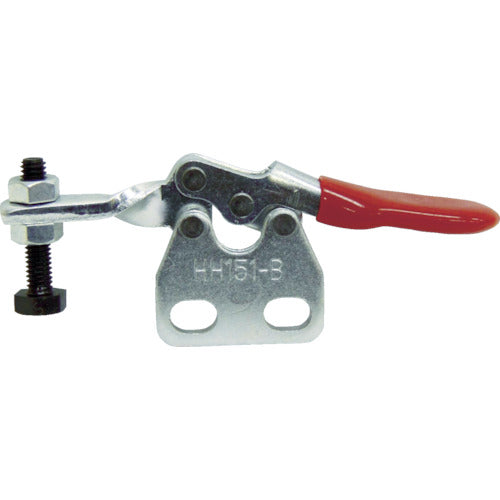

Kakuta Horizontal Handle Toggle Clamp No. HH151B KC-HH151B 1 pc

Catalog number: KC-HH151B Features: ●Includes nylon bolts (M4 x 21) for light work. Specifications: ●Total length (mm): 72 ●Tightening force (kN): 0.27 ●Included bolt diameter: M4 x 21 (nylon bolt) ●Clamp arm movement angle (°): 95 ●Handle operation angle (°): 70 ●Product marking: HH151B ●Remarks: △ ●Tightening force (kg): 27 ●Downward pressure type ●Horizontal handle type ●Straight base Material/Finish: ●Steel (SPCC) Set contents/Accessories: ●M4 x 21 resin bolt ●2 nuts Caution: ●The indicated tightening force is a guide. ●The tightening force becomes weaker toward the tip of the clamp arm. ●Please note that impact, vibration, and internal pressure may cause damage. ●Be careful not to pinch your hand.
