Kakuta Handle Vertical Toggle Clamp (Downward Pressing Type) No. 46B Clamping Pressure 3.5kN KC-46B 1 pc

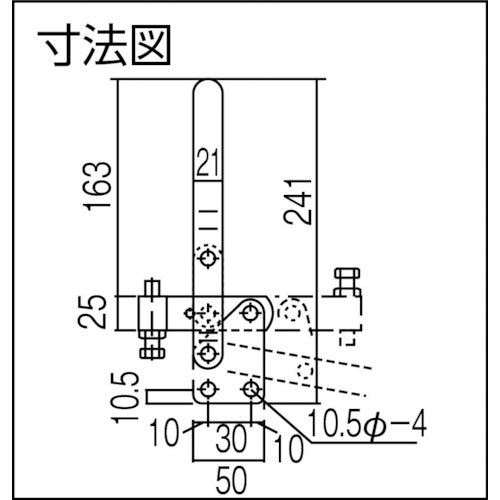

Catalog number: KC-46B Features: ●All-metal type with no plastic cover on the handle. Specifications: ●Total length (mm): 238 ●Tightening force (kN): 3.5 ●Attached bolt diameter: M10 x 50 ●Clamp arm movement angle (°): 180 ●Handle operation angle (°): 100 ●Product marking: No. 46B ●Total height (mm): 241 ●Mounting pitch (mm): 30 ●Remarks: △ ●Downward pressing type ●Vertical handle ●Straight base Material/Finish: ●Steel (SPCC) Caution: ●The indicated tightening force is a guide. ●The tightening force becomes weaker toward the tip of the clamp arm. ●Please note that impact, vibration, and internal pressure may cause damage. ●Be careful not to pinch your hand.
