Kakuta Vertical Handle Toggle Clamp No. 46A KC-46A 1 pc

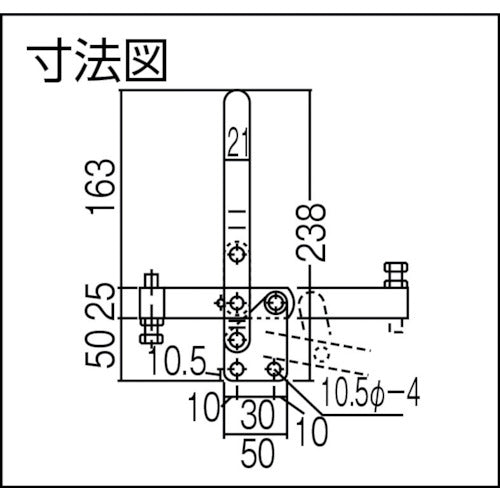

Catalog number: KC-46A Features: ● All-metal type with no plastic cover on the handle. Specifications: ● Total length (mm): 238 ● Clamping force (kN): 2.8 ● Attached bolt diameter: M10 x 50 ● Clamp arm movement angle (°): 180 ● Handle operation angle (°): 100 ● Product mark: No. 46A ● Total height (mm): 238 ● Mounting pitch (mm): 30 ● Summary: △ ● Clamping force (kn): 2.8 ● Downward pressing type ● Vertical handle ● Straight base Material/Finish: ● Steel (SPCC) Caution: ● The indicated clamping force is a guide. ● The clamping force becomes weaker toward the tip of the clamp arm. ● Please note that impact, vibration, and internal pressure may cause damage. ● Be careful not to pinch your hand.
