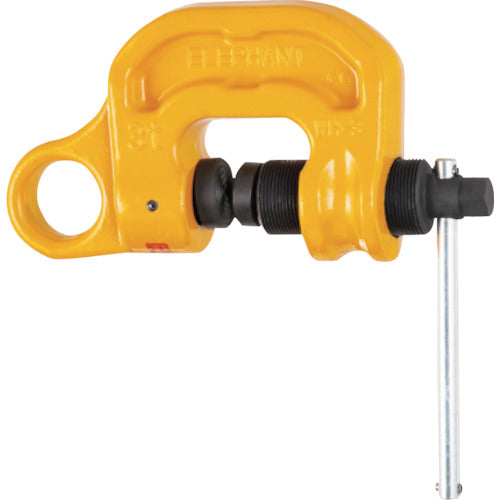

ZOJIRUSHI Screw Clamp 0.5t WH-00500 1 unit

Catalog number: WH-00500 Features: ● Ultra-lightweight and compact clamp with one hanging hole. ● Spherical double cam lock system securely clamps tapered I-beams, etc. Applications: ● For lifting and transporting work. ● Hanging piece for electric chain blocks, hoists, pulleys, etc. ● Pulling steel plates and structures, etc. Specifications: ● Basic load capacity (t): 0.5 ● Clamping range (mm): 3-28 ● Dimensions (mm) D: 25 ● Dimensions (mm) H: 90 ● Dimensions (mm) H2: 54 ● Dimensions (mm) L: 138 ● Maximum load capacity (t): 0.5 ● Minimum load capacity (t): 0.1 ● Effective plate thickness (mm): 3-28 ● Height (mm): 90 ● Width (mm): 138
