The thumb-operated latch structure allows for easy attachment and removal with one hand.
A click sound confirms a secure connection. Materials: Main parts and valves: POM (polyacetal), latch: stainless steel, valve spring: stainless steel (SUS316), external spring and pin: stainless steel, O-ring: NBR (nitrile rubber)
Operating pressure: Vacuum to 0.84MPa
Operating temperature range: -40℃ to 82℃

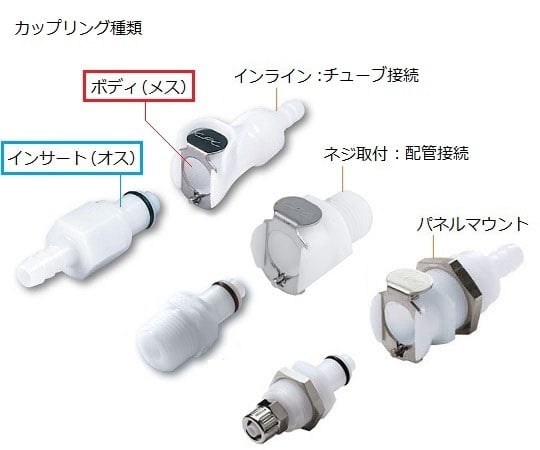

Type: Insert
Connection: for inner diameter 3.2 mm
Acetal with valve

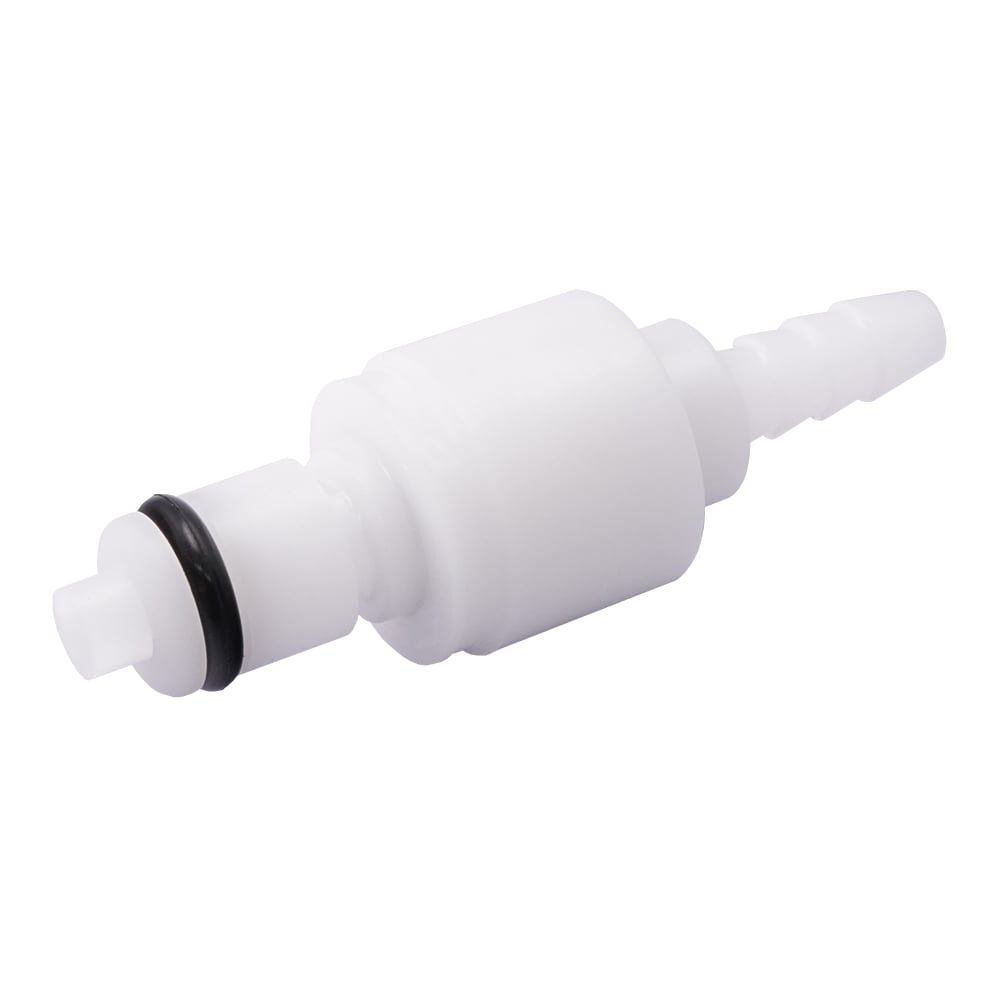

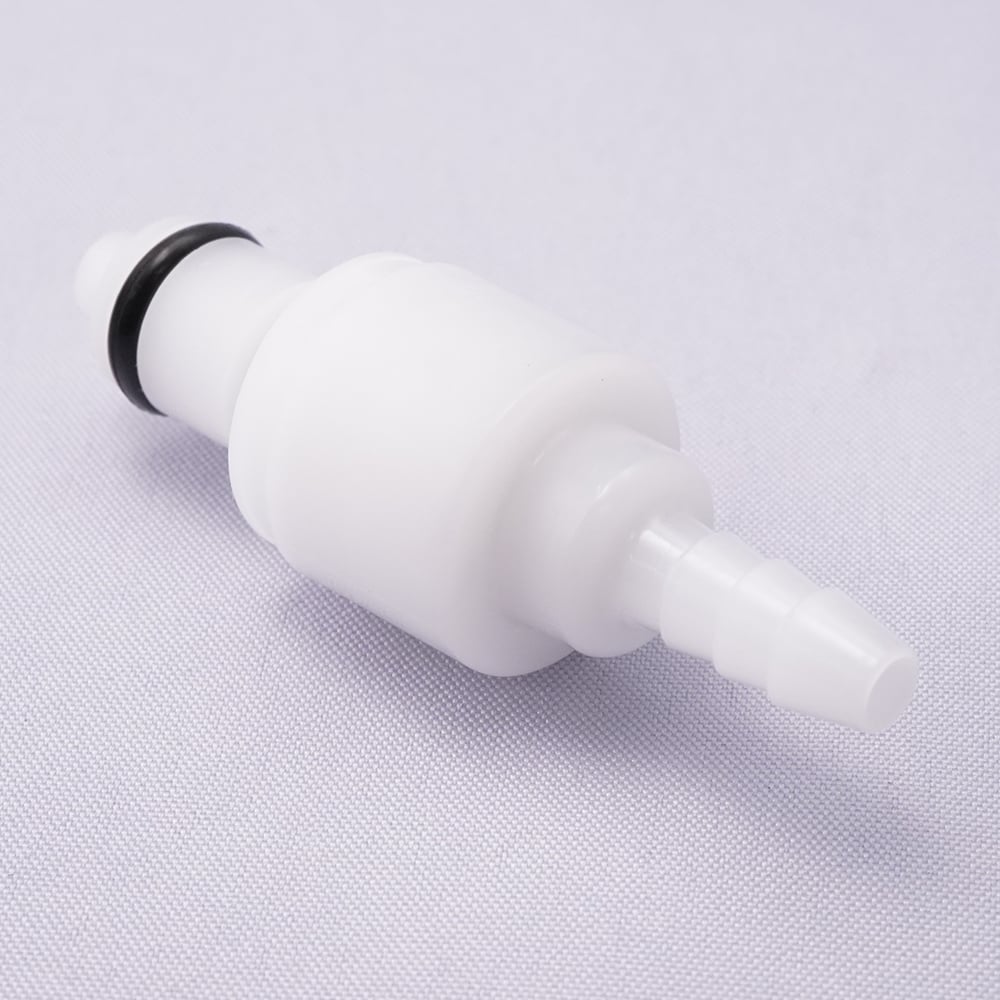

Model number: PMCD2202
