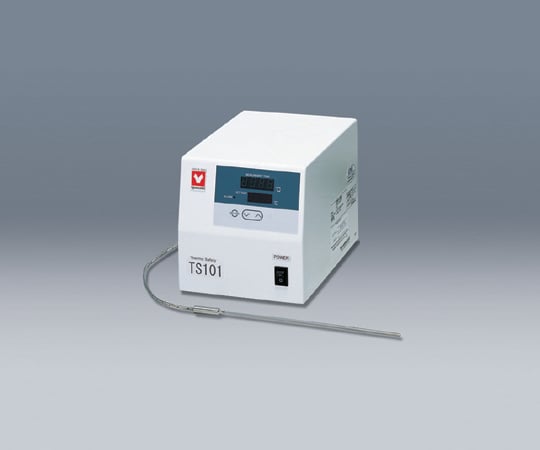

Overheat protection device TS101 1 unit

It prevents abnormal overheating during operation and reliably cuts off the power to the equipment. Simply connect it to your incubator or thermostatic water bath to prevent abnormal overheating. In the unlikely event of an abnormality, the device will stop and an error message and buzzer will sound to notify you. The temperature setting can be locked by key. Setting range: 0 to 500°C Input power: AC100V Temperature detection accuracy: ±1℃ Sensor: K thermocouple Sensor size: φ3.2×200mm Power cut-off capacity: AC100V 14.5A Temperature display method: Digital display (sensor temperature and set temperature display) Overheating temperature detection operation: Cuts off the power supply to the target device, issues a warning with a buzzer, and alternates between displaying Er07 and the sensor detected temperature on the measurement temperature screen Alarm output: A contact 250V 3A Safety device: Fuse, self-diagnosis function (temperature input abnormality, memory abnormality) Target device connection method: 3P power cord connection terminal block Power supply: AC100V 50/60Hz 0.5A, 3P power plug, no breaker Power cord length: Approx. 2m External dimensions: 150 x 210 x 155 mm (excluding protrusions) Weight: Approx. 3.5kg Accessories: Sheath type K thermocouple (immersion part 200 mm) and main body fixing bracket Code: 583719
