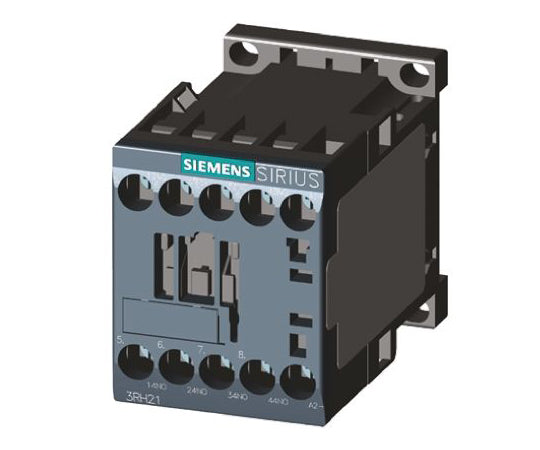

Magnetic contactor 3RH2 series 3RH2122-1AB00 1 piece

IEC60947-1, EN60947-1, IEC 60947-4-1, EN 60947-4-1, IEC 60947-5-1, EN 60947-5-1. When damping the contactor coil against voltage peaks the OFF delay of the NO contacts and the ON delay of the NC contacts are increased (noise suppression diodes 6 → 10 times, diode assemblies 2 → 6 times, varistors + 2 → 5 ms). Contactor Relay - 3RH2 Series Weatherproof, finger-safe contactor relays. RC elements, varistors, diodes or diode assemblies (combination of diode and Zener diode) can be plugged into all contactor relays for attenuating opening surge of the coil. Size S00 High contact stability at low voltages and currents Suitable for use in solid-state circuits with a current of 1 mA and a voltage of 17 V Expandable to 4 contacts using a snap-on auxiliary switch block Quantity: 1 piece Scope: SIRIUS Innovation Series: 3RH2 Number of poles: 4 Coil voltage: 24 V ac Contact current rating: 10 A Contact voltage rating: 690 V ac Normal state configuration: 2NO/2NC Number of auxiliary contacts: 4 Terminal Type: Screw Width: 45mm Depth: 73mm RoHS Compliance Status: Compliant Code number: 746-0721
