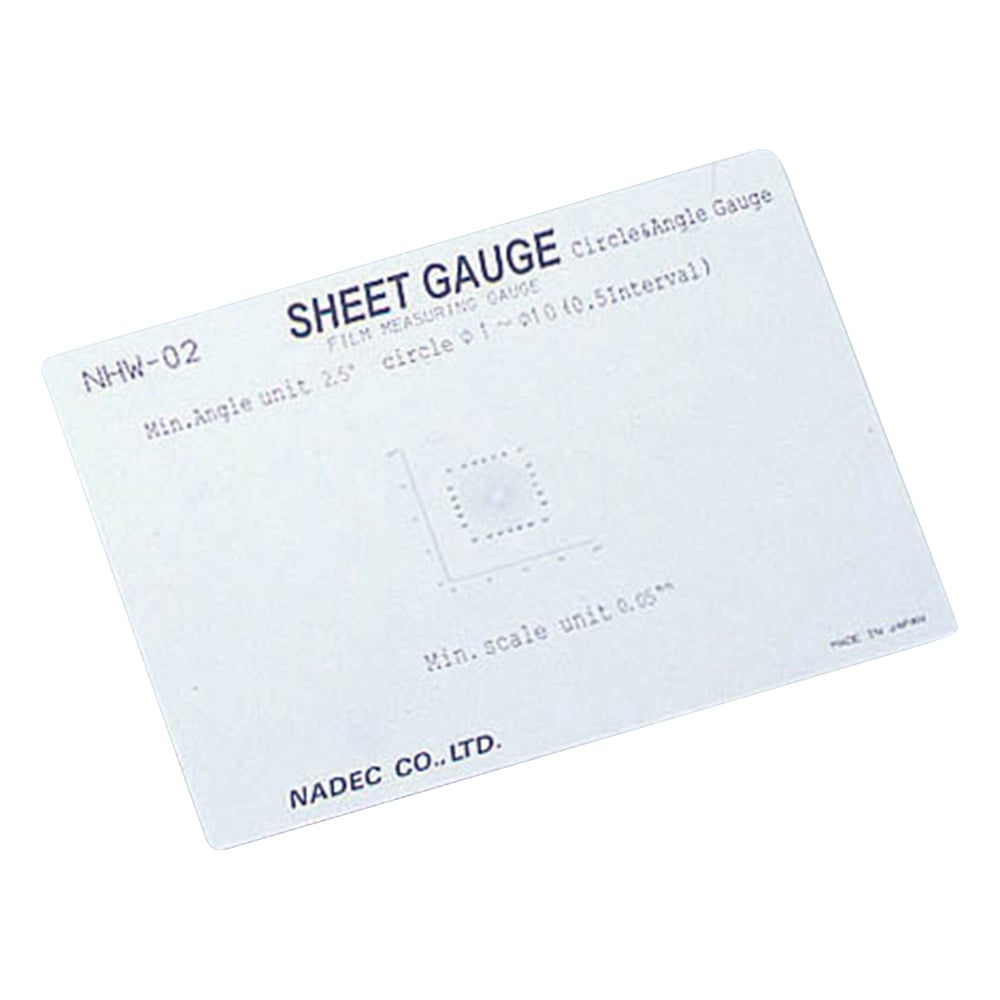

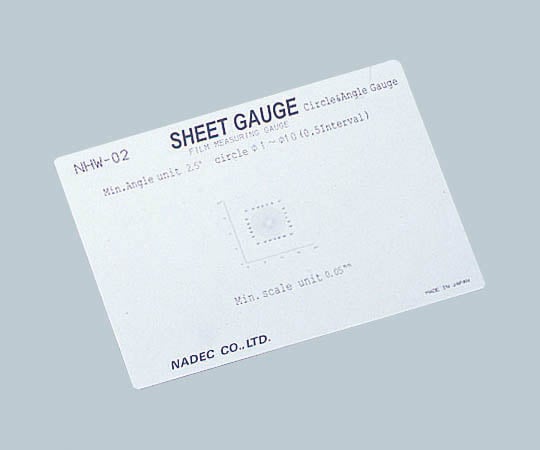

The 360° angle gauge is marked with a minimum increment of 2.5°, making it suitable for a variety of uses.
The patterns are tailored to specific applications and purposes, making it easy to perform simple inspections and measurements using magnifying microscopes such as microscopes.
Made of polyester, it is easy to handle.
As a calibration sheet, it is useful for checking the accuracy of the reference scale of measuring equipment and the screen display scale, and for comparison and certification.
It is used in many industries as an inspection and observation scale in industrial fields, schools, hospitals, research institutes, biotechnology, etc. Type: Angle gauge
Scale unit (mm): 2.5°
Sheet Gauge
Material: Polyester
Size: 75 x 105 mm
Pattern accuracy: Within ±0.004mm (dimensions are at the center of the line width)
Line width: 0.006 to 0.008 mm
Uses: For measuring circles and accuracy, etc.
Sheet thickness: 0.175mm
