High Frequency Paratip Right Handed TIN Coating PT420BR 1pc

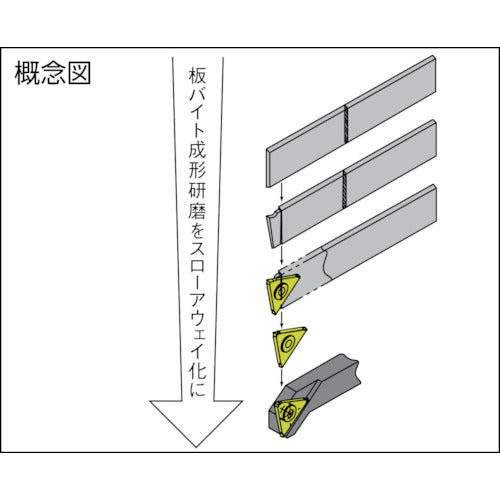

Catalog number: PT420BR Features: ● No need for sharpening, molding, or grinding, so it can be used immediately. ● The specially shaped tip eliminates vibration during cutting. ● TIN coating significantly improves wear resistance, heat resistance, and chipping resistance, significantly increasing tool life by 3 to 10 times. Applications: ● For parting and grooving. Specifications: ● Suitable holder: PTH40R ● Suitable work material: metal, resin, etc. ● Tip shape: triangular ● Thickness (mm): 2 ● Coating: TiN or TiAlN ● Direction: right-handed ● Tip length (mm): 40 ● Lead angle (°): 5 ● Surface treatment: TIN coating Material/Finish: ● High-speed steel (NK4)
