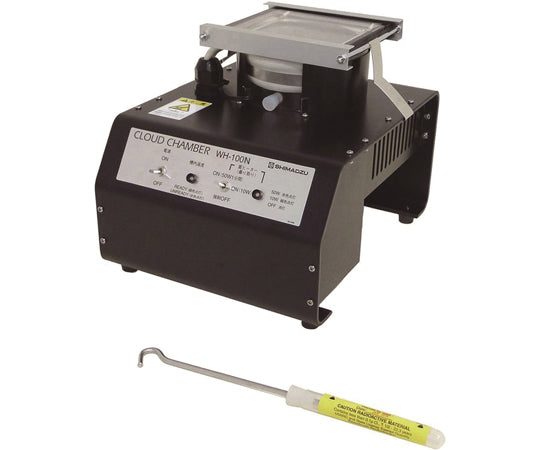

High temperature diffusion cloud chamber WH-100N 136-801 1 unit

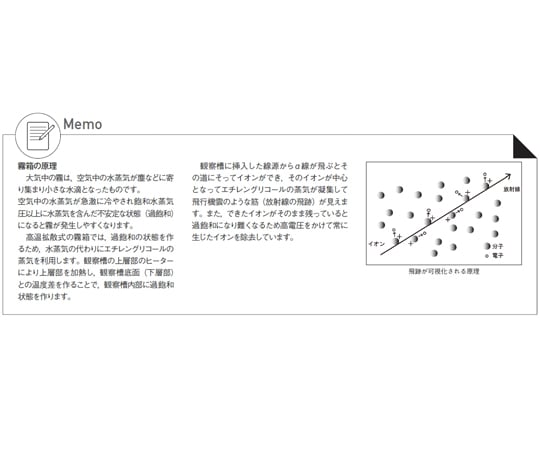

At room temperatures between 10 and 30°C, radiation tracks can be observed continuously for more than an hour. When ethylene glycol is poured into the observation tank and made supersaturated, radiation is released into it, causing the ethylene glycol to condense, making it possible to observe the radiation tracks. At room temperatures between 10 and 30°C, observation can be started in approximately 5 minutes after operation starts, and continuous observation for over an hour is also possible. Temperature control on the top lid and sides allows a stable state of supersaturation to be maintained, making the tracks more visible than with conventional products. All-around lighting (white LEDs) eliminates blind spots around the unit, making it easier to observe flight tracks. It can also be used for university experiments and research. Observation tank: φ100mm, made of heat-resistant glass Heater: Top lid, 10W/50W/forced OFF switching Side: 50W/OFF automatic control Light source: white LED, all-around lighting Removal of miscellaneous ions: by generating an electric field Size: W210×D260×H210mm Power supply: AC100V, 50/60Hz Power consumption: Maximum approx. 100W Radiation source: Mineral radiation source for cloud chamber Product code: 136-801
