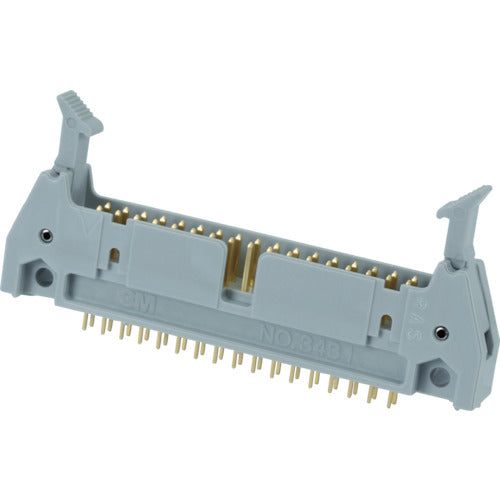

3M Box Header, Straight Type, 30 Poles, 3440-6002 LCPL, 1 Piece

Catalog number: 3440-6002 LCPL Features: ● 4-sided molding protects the contacts and prevents the socket connector from being inserted backwards. ● Ejector latch makes it easy to fix and remove the socket connector. ● Equipped with mounting holes that are effective for temporarily fixing during soldering and relieving stress on the through-holes during insertion and removal. Applications: ● For connecting boards of general industrial equipment and various units. Specifications: ● Number of poles: 30 ● Length (mm): 95.7 ● Width (mm): 8.6 ● Height (mm): 14.8 ● Compatible board thickness: 1.6 mm ● Tail length: 2.8 mm ● With long grip (compatible with socket connectors with strain relief) ● Contact gold plating thickness 0.2 μm or more (others are gold flash plated) ● RoHS compliant Material/Finish: ● Glass reinforced polyester
