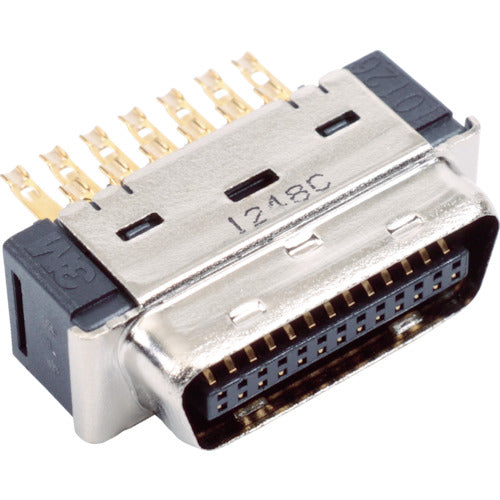

3M Miniature Delta Ribbon System Solder Plug 10140-3000 PE 1 pc

Catalog number: 10140-3000 PE Features: ●Industry standard MDR system for half-pitch I/O connectors. ●Pre-force type cantilever contacts ensure high reliability by providing low insertion and removal force and anti-tightening measures. ●Unique contact shape that takes soldering workability into consideration. Applications: ●FA and general industrial I/O. Specifications: ●Number of poles: 40 ●Color: Black ●Compatible connector: MDR receptacle ●Compatible wire (AWG): #24 to #30 ●Rated current (A): Max. 0.5 ●Applicable wire (AWG): 24 to 30 ●Voltage AC150V/DC200VMAX ●Ambient temperature -55℃ to 85℃ Materials/Finish: ●Body: Glass-reinforced polyester ●Shroud: Copper ●Contact: Copper alloy
