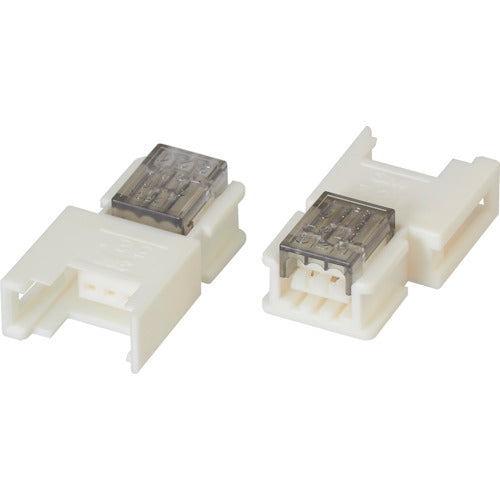

3M Mini Clamp III Wire Mount Socket for Wire Relay Connection 3-Pole 37B03-C206-W00 MB 1 Piece

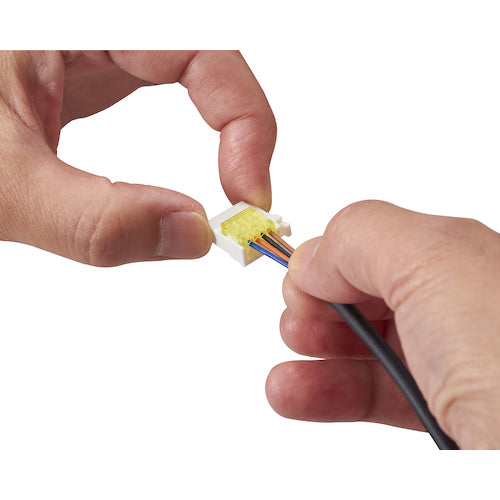

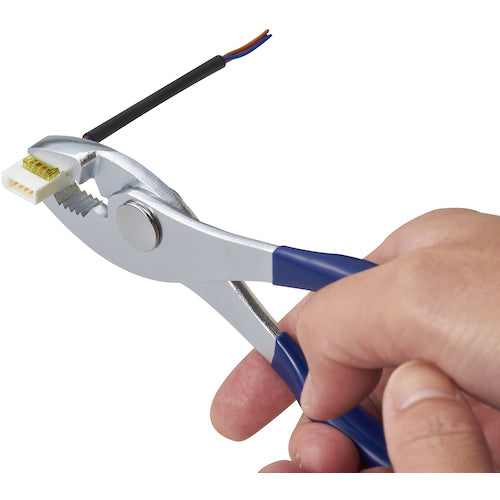

Catalog number: 37B03-C206-W00 MB Features: ●A simple and reliable crimping connector that can be easily connected by simply inserting the wire and crimping it with pliers. ●A connector that complies with the industry standard e-CON. Applications: ●Sensor connection. ●Wire-saving devices. Specifications: Number of poles: 3 Color: Gray Compatible connector: Mini clamp wire mount plug 371 series, 37A series Compatible wire (AWG): #20-24 Operating temperature range (℃): -20 to 85 (when current is applied at 1A) / -20 to 75 (when current is applied at 2A) / -20 to 60 (when current is applied at 3A) * No condensation or water droplets Rated current: Maximum 3A Finished outer diameter (mm): 1.6-2.0 Rated current (A): Maximum 3.0A A (mm): 13.8 B (mm): 11.5 Withstand voltage (V): AC/DC 32 or less Rated current: Maximum 3A Operating temperature range: -20 to 85℃ (when current is applied at 1A), -20 to 75℃ (when current is applied at 2A), -20 to 60℃ (when current is applied at 3A) * No condensation or water droplets Material/Finish: Body: Polybutylene terephthalate (PBT) Base cover: 66 nylon Top cover: Polycarbonate Contacts: Copper alloy
