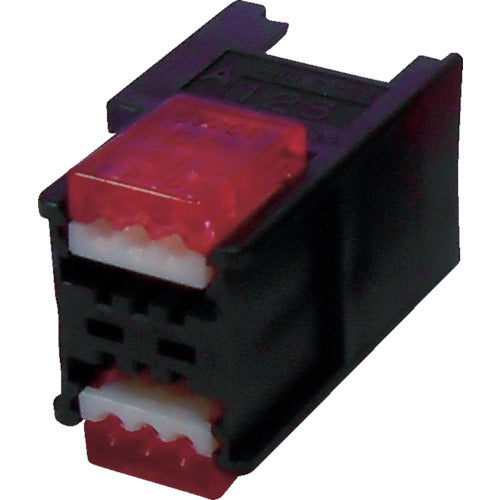

3M Mini Clamp Wire Mount Socket 6 Pole for Cable Relay Connection 37306-3101-0W0 FL 1 pc

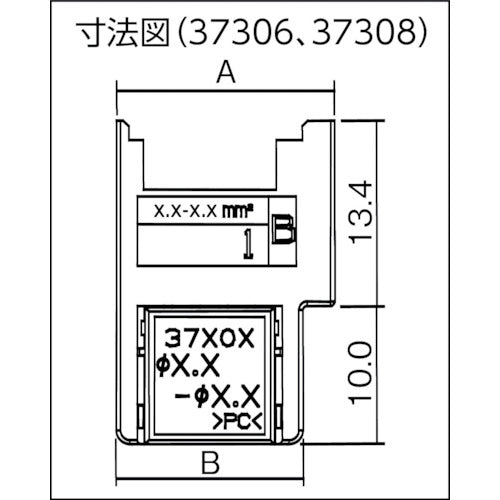

Catalog number: 37306-3101-0W0 FL Features: ●A simple and reliable lump-type crimping connector that can be easily connected by simply inserting the wires and crimping them with pliers. ●Can be connected without stripping the wire insulation. ●Complies with the industry standard e-CON. ●Transparent cover allows visual confirmation of wire insertion status. ●Relay connection of wires is possible with only male and female connectors, reducing the number of parts. Applications: ●Sensor connection. ●Wire-saving devices. Specifications: Color: Red; Suitable wire (AWG): #24-26; Rated current: Maximum 3A; Finished outer diameter (mm): 0.8-1.0; A (mm): 13.8; B (mm): 11.5; Nominal cross-sectional area (m2): 0.14 or more, less than -0.3; Operating temperature range: -20 to 85°C (when 1A is applied), -20 to 75°C (when 2A is applied), -20 to 60°C (when 3A is applied) *No condensation or water droplets. Material/Finish: Body: PBT; Base cover: 66 nylon; Top cover: polycarbonate; Contacts: copper alloy
