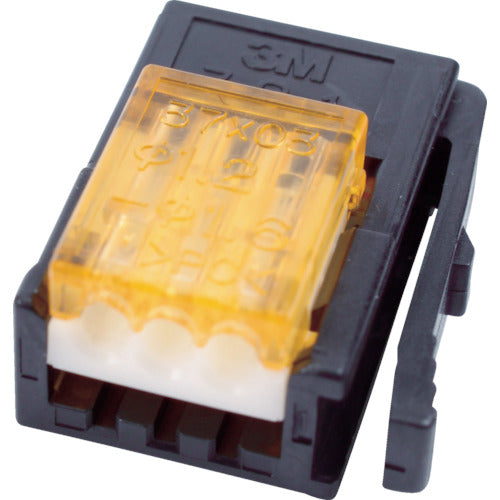

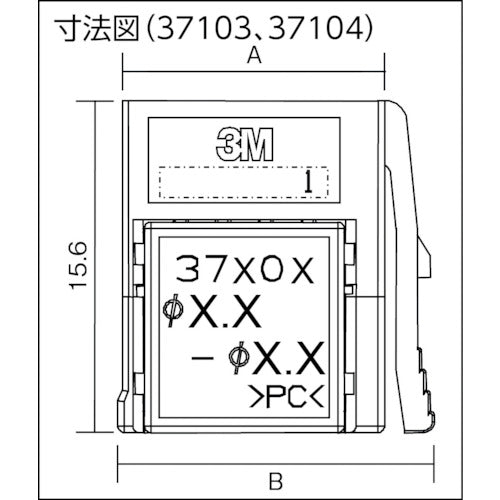

Catalog number: 37103-3163-000 FL Features: ● Simple and reliable lump-crimp connector that can be connected by simply inserting the wires and crimping with pliers. ● Can be connected without stripping the wires. ● Connector that complies with the industry standard e-CON. ● One-touch locking mechanism allows easy connection and removal with one hand, and ensures a secure mated state. ● Transparent cover allows visual confirmation of wire insertion status. Applications: ● Sensor connection. ● Wiring-saving devices. Specifications: ● Number of poles: 3 poles ● Color: Orange ● Compatible connector: Mini clamp board mount socket 372xx-xxxx-00x○○ Mini clamp wire mount socket 373xx-xxxx-0x0FL●Compatible wire (AWG): #24-26●Compatible wire conductor diameter (mm): 0.6-2.0●Rated current: Maximum 3A●Finished outer diameter (mm): 1.2-1.6●A (mm): 10.4●B (mm): 13.3●Nominal cross-sectional area (m［［Ｍ２］］): 0.14-less than 0.3●Operating temperature range: -20 to 85℃ (when current is 1A), -20 to 75℃ (when current is 2A), -20 to 60℃ (when current is 3A) *No condensation or water droplets Material/Finish:●Body: Polybutylene terephthalate (PBT)●Base cover: 66 nylon●Top cover: Polycarbonate●Contact: Copper alloy
