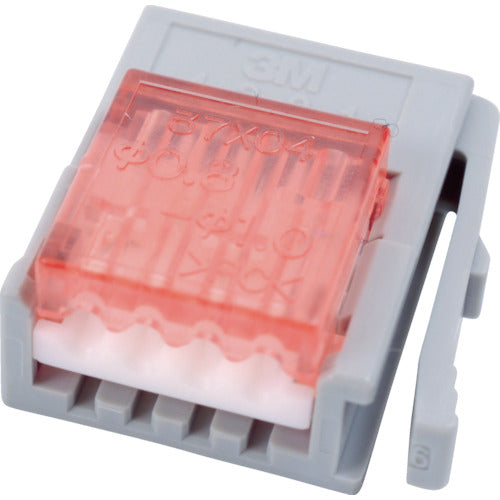

3M Mini Clamp Wire Mount Plug 4 Pole 37104-4101-G00 FL 1 pc

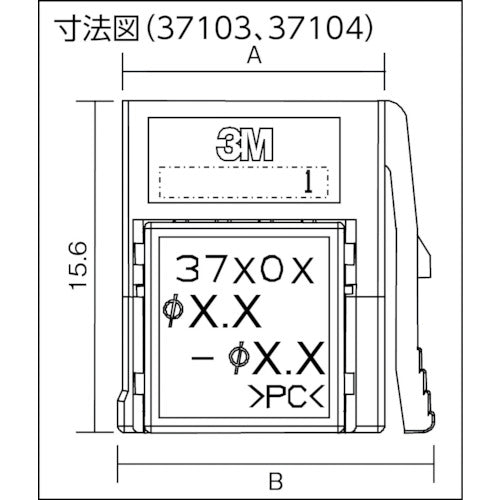

Catalog number: 37104-4101-G00 FL Features: * A simple and reliable lump-crimp connector that can be used by simply inserting the wires and crimping with pliers. * Wiring can be connected without stripping the wire insulation. * Connector conforms to the industry standard e-CON. * One-touch locking mechanism allows easy connection and disconnection with one hand, and also ensures a secure mating. * Transparent cover allows visual confirmation of wire insertion status. Applications: * Sensor connection. * Wire-saving devices. Specifications: Color: Red; Suitable wire (AWG): #26-28; Rated current: Maximum 3A; Finished outer diameter (mm): 0.8-1.0; A (mm): 12.4; B (mm): 15.3; Operating temperature range: -20 to 85°C (when 1A is applied), -20 to 75°C (when 2A is applied), -20 to 60°C (when 3A is applied) *No condensation or water droplets. Material/Finish: Body: PBT; Base cover: 66 nylon; Top cover: polycarbonate; Contacts: copper alloy
