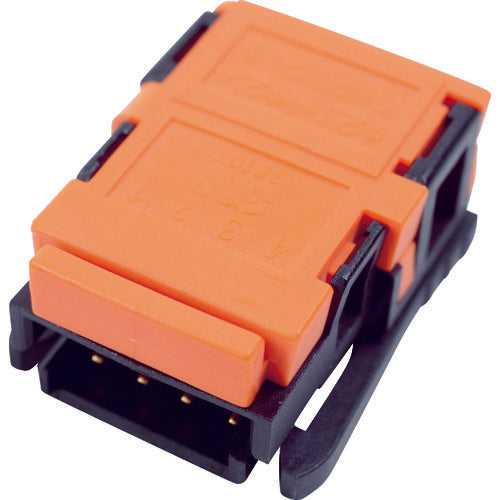

3M Link Connector Wire Mount Connector 4 Pole for Round Cable 38104-E018-E00 FL 1 pc

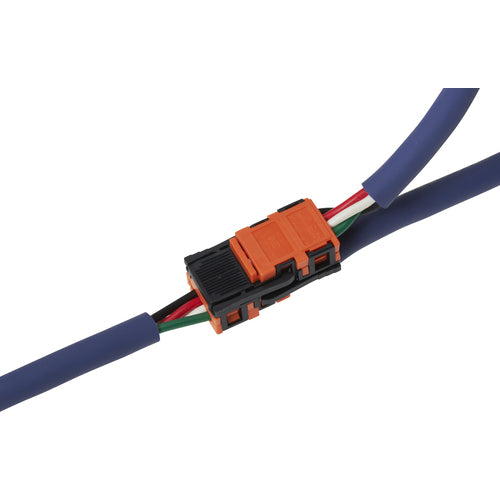

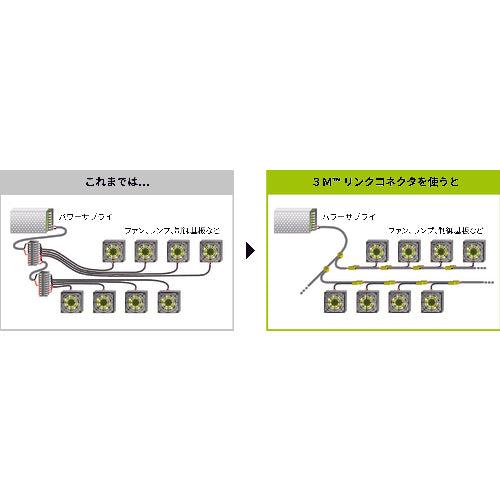

Catalog number: 38104-E018-E00 FL Features: ●Hermaphrodite connector allows cable relay and T-branching with one type of connector. ●Simple and reliable lump crimp connector that only requires setting the wires and crimping with pliers. ●No special tools required. Applications: ●Wire-saving systems. Specifications: ● Cable type: Round cable ● Number of poles: 4 poles ● Color: Orange ● Compatible connector: 38104-x0xx-x00 FL, 38204-x2S3-000 PL ● Compatible wire (AWG): AWG #18 ● Type: For round cables ● Rated current: Maximum 5A ● Finished outer diameter (mm): 2.1-2.4 ● Compatible wire: AWG #18 ● Nominal cross-sectional area 0.75 (m [M2]) ● Applicable wire (AWG): #18 ● Operating temperature range: -20 to 70°C ● For round cables Material/Finish: ● Body: PBT resin ● Cover: Nylon ● Contacts: Copper alloy
