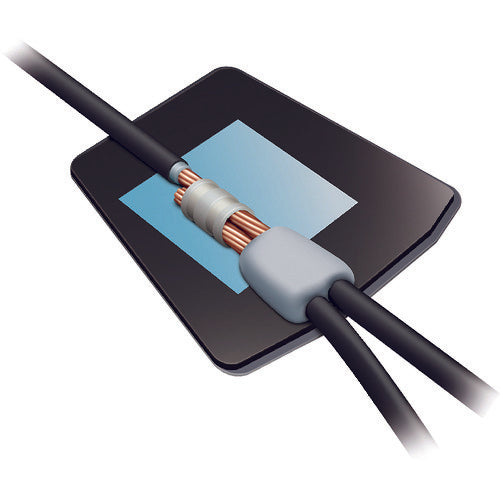

3M Sheet-wound connection material for low-voltage power cables Branch connection B06W-2-EM B06W-2-EM 1 PK

Catalog number: B06W-2-EM Features: ● The sheet winding method has been further improved, and the finish is beautiful with short construction times. ● The position of the putty layer has been optimized, so there is no overflow of putty after winding, and it prevents the putty from adjoining cables. ● No need to measure as the position can be adjusted using the cutouts in the sheet. ● The sheet has a built-in film layer to protect the conductor connection from external impact and prevent the sleeve from piercing. Applications: ● For protecting cables when connecting power cables in a straight line or branching. Specifications: ● Suitable cable conductor sizes (mm2): 150, 200, 250, 325 ● Width (mm): 185 ● Length (mm): 195 ● Suitable T-type connector sizes: T154 to T365 ● Sheet winding method ● Branch connection for single core Material/Finish: ● EPDM + Butyl + PE film Note: ● The size must be selected according to the cable size.
