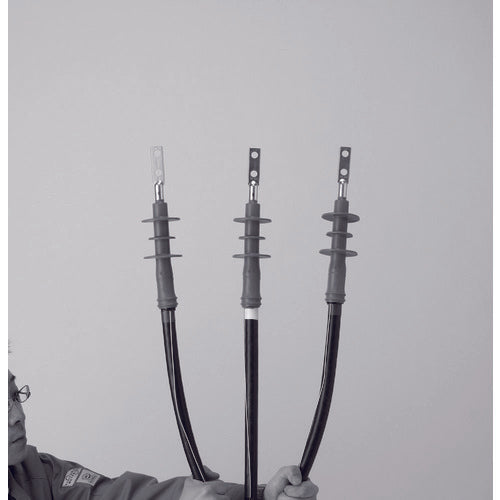

3M Kanto High-K Term 2-EM (for outdoor use) CVT100SQ kit T6SB-R3-O100-EM 1 S

Catalog number: T6SB-R3-O100-EM Features: ●Can be used for UAS and UGS. (Indoor use only) ●Silicone grease (lubricant) is built into the terminal body, allowing smooth operation without soiling hands or parts. ●Silicone rubber material is used for the terminal body to improve insertion workability. ●An O-ring seal built into the bottom of the terminal maintains airtight performance, so additional waterproofing such as wrapping an outer layer of tape is not required. ●A solderless grounding clamp is used, eliminating the need for soldering the ground wire. ●Halogen-free and lead-free, it can also be used with eco-cables (EM-CET cables). Applications: ●Terminals for 6600V CVT, CVT(EE), and EM-CET cables. Specifications: * Compatible cable conductor size (mm2): 100 * Type: For outdoor use * Compatible with Tokyo Electric Power Company's high voltage service inlet wiring * JCAA K 1301 standard product (No. 11001, No. 11002) Material/Finish: * Main body: Silicone rubber Set contents/Accessories: * Terminal body x 3 (terminal integrated type), 3M self-fusing insulating tape (fit tape) x 1 roll (10 m), 3M semi-conductive tape 13 x 1 roll, ground clamp (with putty) x 3, tin-plated soft copper wire x 1, saddle clamp x 3, saddle rubber bushing x 3, fixing bolt and nut set x 6 sets
