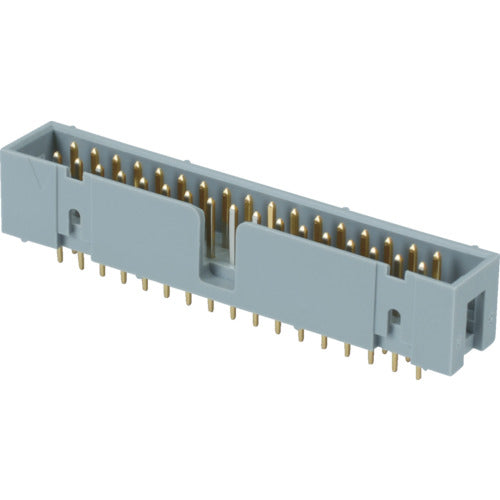

3M V-Low Profile Header, Straight Type, 40 Poles, 7640-6002 BL, 1 Piece

Catalog number: 7640-6002 BL Features: ● 4-sided molding protects the contacts and prevents the socket connector from being inserted backwards. ● When combined with a board mount socket, it allows board-to-board connection. Applications: ● For connecting boards of general industrial equipment and various units. Specifications: ● Number of poles: 40 ● Length (mm): 58.1 ● Width (mm): 8.5 ● Height (mm): 9.3 ● Compatible board thickness: 1.6mm ● Gold plating thickness at contact points: 0.2μm or more (gold flash plating on soldered parts, nickel plating on others) ● RoHS compliant Material/Finish: ● Glass reinforced polyester
