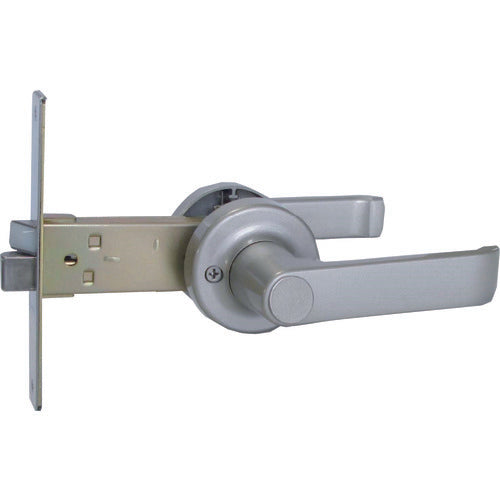

AGENT LF-1000 Lever Handle Replacement Lock B/S100 Empty Lock AGLF1000KU 1 S

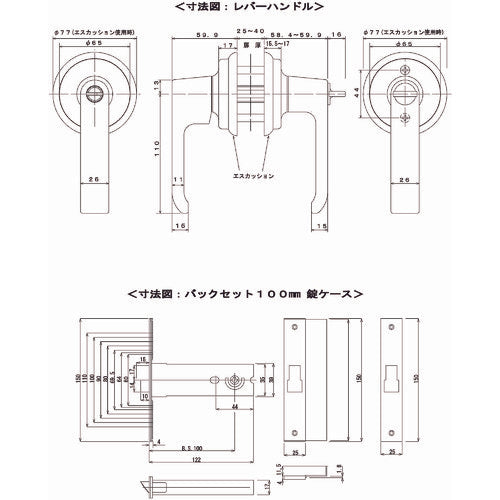

Catalog number: AGLF1000KU Features: ●Can be replaced from doorknob to lever handle. Ideal for barrier-free access. ●Comes with a luminous sticker that makes it easy to find the key hole even in the dark. ●Comes with a Φ77mm escutcheon that can hide the marks of the previously installed round base. ●Comes with a stopper plate that prevents the lever from turning more than necessary. (Only for L-shaped front, LP and LS backset 100mm) Applications: ●For office and factory doors. Specifications: ●Color: Silver ●Backset (mm): 100 ●Case depth (mm): 122 ●Compatible door thickness (mm): 25 to 40 ●Type: Empty lock ●Width (mm): 26 ●Length (mm): 110 ●Deadbolt (mm): 15 ●Round seat diameter (mm): 65 ●Mounting screw pitch (mm): 44 ●Empty lock outside: Empty lever, inside: Empty lever ●Front screw pitch (mm): 60, 64, 69.5, 80, 90, 100, 110 ●Finish: Silver painted Material/Finish: ●Lever/round seat: Aluminum die-cast ●Key: Brass (nickel plated) Note: ●The lock case comes with a deadbolt.
