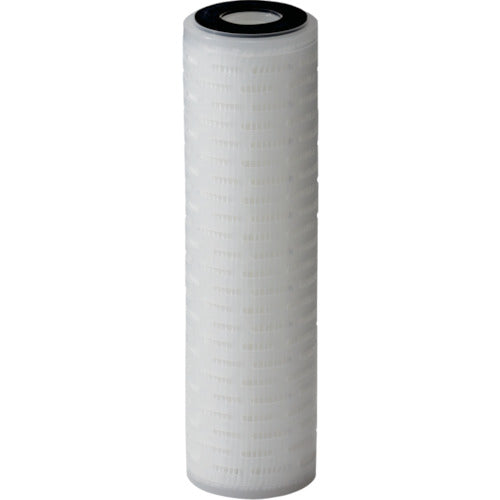

AION Filter Element WST (Double Open End Viton Gasket) Filtration Accuracy: 1μm W-010-S-DO-V 1 piece

Catalog number: W-010-S-DO-V Features: ●WST is a very economical pleated cartridge filter using FDA-compliant polypropylene nonwoven fabric. ●With a filtration accuracy of 99.9% of the indicated accuracy and high dust collection capacity, when used as a prefilter for membrane filters, the filter life is dramatically improved. Applications: ●For food, brewing, pharmaceutical, and chemical fields. ●For filtering pure water and solvents in the electronics and semiconductor industries. ●For prefiltering RO, UF, and membrane filters. Specifications: ●Filtration accuracy (μm): 1.0 ●Outer diameter (mm): 70 ●Length (mm): 248 ●Compatible housing: 1FAS-10SP ●Type: Cartridge ●Inner diameter (mm): 26 ●Maximum operating temperature: 80°C ●Recommended replacement differential pressure: 0.20MPa Material/Finish: ●FDA-compliant all-polypropylene ●Gasket: Viton Caution: ●Make sure the filter is securely set in the housing before using. ●Please observe the pressure resistance, heat resistance, and replacement differential pressure when using the filter. ●Appropriate gaskets vary depending on the fluid used. Please contact the manufacturer for gasket selection.
