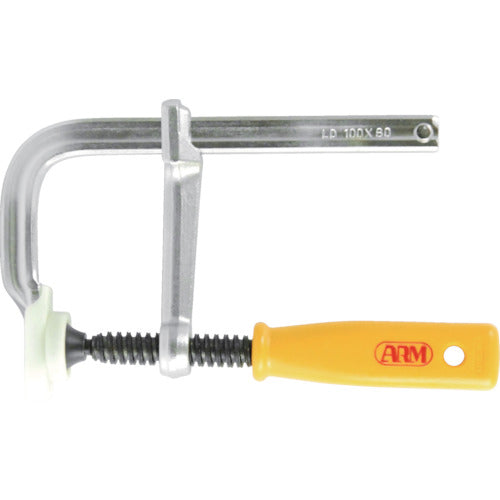

ARM L-clamp 100mm LD-100 1 piece
ARM L-clamp 100mm LD-100 1 piece
Regular price
¥2,442
Regular price
Sale price
¥2,442
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

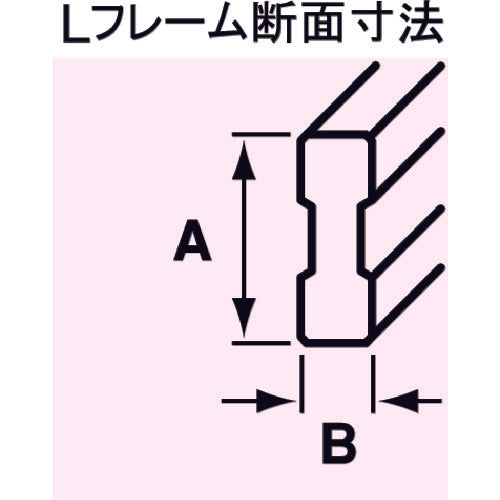

Catalog number: LD-100 Features: ●Used for woodworking, temporary fastening, and gluing work. ●Protective cap prevents damage to the workpiece. Uses: ●For woodworking, gluing, and temporary fastening work. Specifications: ●Total length (mm): 210 ●Maximum opening (mm): 100 ●Depth (mm): 80 ●Frame dimensions (mm) A: 15.6 ●Frame dimensions (mm) B: 7.5 ●Maximum clamping pressure (kg): 300 ●Tightening pressure (kg) (when opened 30 mm): 300 ●Outer spread width (mm): 100 ●Arm length (mm): 180 ●Mounting hole diameter (mm): 8 ●Maximum opening dimension (mm): 150 ●Depth of pocket (mm): 80 ●Protective cap included ●Tightening force resistance (kg): 300 Material/Finish: ●Special steel Set contents/Accessories: ●Protective cap Caution: ●Occasionally lubricate the screw parts.
