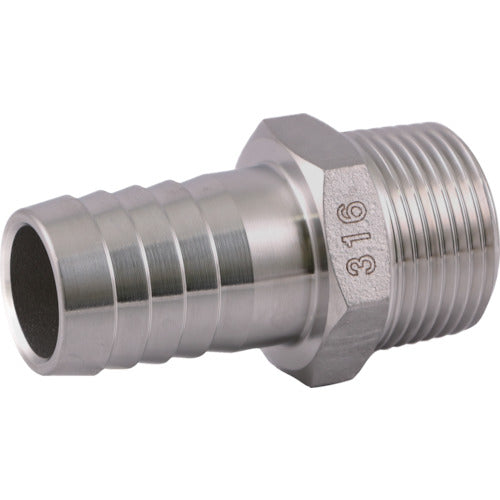

ASOH Ace nipple PT1-1/2 x Φ40.5 SCS14 HN-8040 1 piece

Catalog number: HN-8040 Features: ● Hose nipple with better corrosion resistance. Specifications: ● Connection diameter D: PT1-1/2 ● Hexagonal side (mm): 50 ● Maximum operating pressure (MPa): 3.45 or less ● Connection diameter (bamboo shoot outer diameter) (mm): 40.5 ● Connection diameter (thread): PT1-1/2 ● Type: Ace nipple ● Operating temperature (℃): -50 to 150 ● Fluid used: Fluid that does not adversely affect the material ● Operating pressure (MPa): 3.45 Material/Finish: ● Stainless steel (SUS316) Note: ● The material is stainless steel (SCS14). (Equivalent to SUS316)
