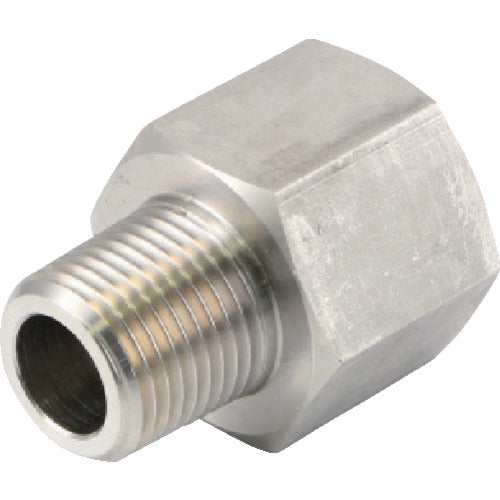

ASOH Stainless Steel Conversion Socket External UNF 1/4-28 x Internal PT 1/8 NF-8281 1 pc

Catalog number: NF-8281 Features: ● Used to convert UNF1/4-28 threads to internal Rc1/8 threads. Applications: ● For removing grease nipples (lubrication fittings) and piping hydraulic hoses. Specifications: ● Connection diameter D: PT1/8 ● Hexagonal face size (mm): 12 ● Maximum operating pressure (MPa): 6.90 ● Connection diameter D1: 1/4-28UNF ● Connection diameter D2: Rc1/8 ● Total length (mm): 21 ● Type: Internal and external socket ● Fluids used: water, air, oil ● Thread: 1/4-28UNF x Rc1/8 ● Fluids used: water, air, oil ● Fluid temperature: -50 to 150°C ● Operating pressure: 6.90MPa Material/Finish: ● Stainless steel (SUS304)
