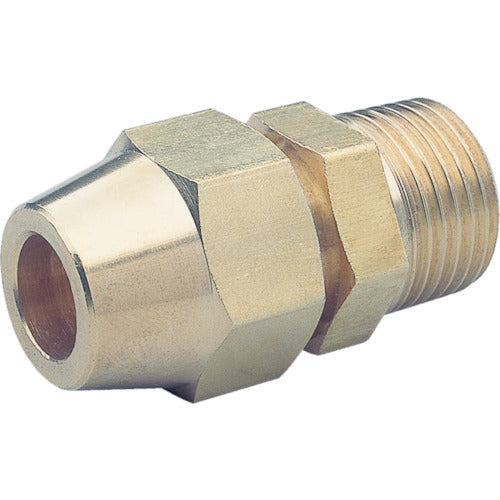

ASOH Flare joint PT1/4XΦ6.35 FS-1202 1 piece

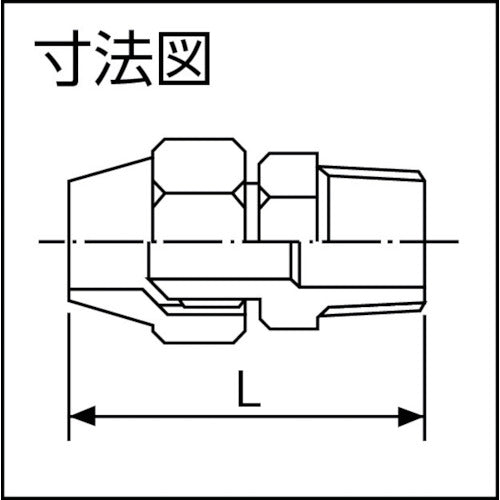

Catalog number: FS-1202 Features: ● A joint for connecting expanded copper pipes to equipment and devices. Applications: ● Copper pipe fittings. ● For connecting flared copper pipes to threaded piping. Specifications: ● Applicable copper pipe outer diameter (mm): 6.35 ● Thread: R1/4 ● Hexagonal nut (mm): 16 ● Hexagonal body (mm): 14 ● Dimensions (mm) L: 37 ● Applicable fluids: water, air, oil ● Dimensions L (mm): 37 ● Fluids used: water, air, oil ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 3.45MPa Material/Finish: ● Brass (C3604) Caution: ● Not compatible with refrigerant gas.
