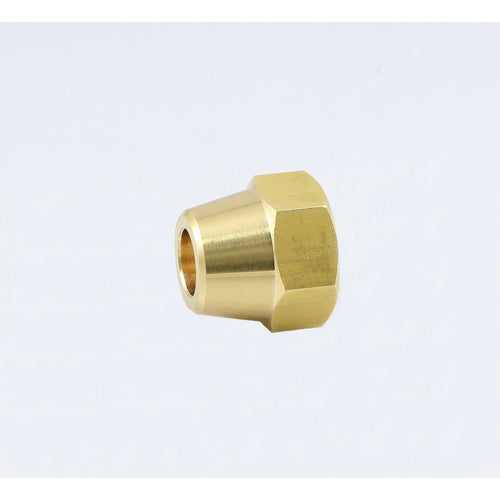

ASOH flare nut Φ9.53 FN-1033 1 piece

ASOH flare nut Φ9.53 FN-1033 1 piece

JAN：4571133556031 　
ASOH fittings Construction and lighting supplies Flare joint (for copper pipes) Pipework Equipment Small diameter pipe fittings
¥239
¥239
Sale Sold out
Shipping calculated at checkout.

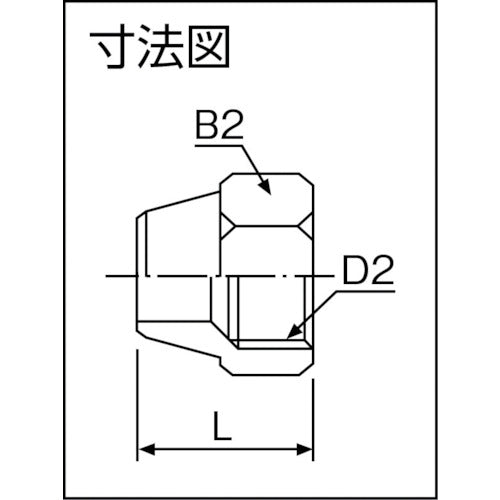

Catalog number: FN-1033 Features: ●As a spare part for flare joints Applications: ●Copper pipe fittings. Specifications: ●Applicable copper pipe outer diameter (mm): 9.53 ●Hexagonal face size (mm): 21 ●Dimensions (mm) D2: UNF5/8×18 ●Dimensions (mm) B2: 21 ●Dimensions (mm) L: 21 ●Fluids used: water, air, oil ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 3.45MPa Material/Finish: ●Brass (C3604) Caution: ●Not compatible with refrigerant gases.
