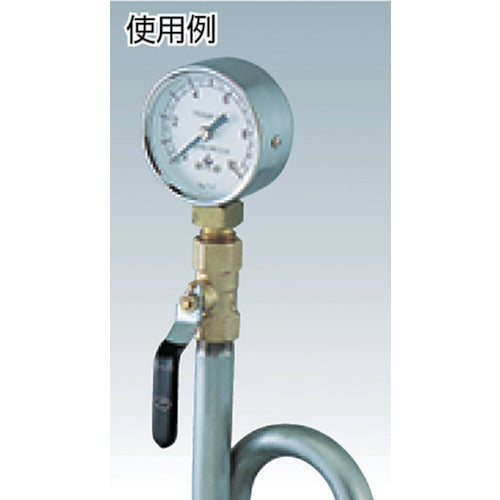

ASOH Meter Ball 3/8 VG-1033 1 piece

Catalog number: VG-1033 Features: ●The meter ball has a G thread on the gauge side, which has a smooth torque and high airtightness, making piping easy and the price is the same as that of a conventional ground cock. ●Can be used as a ball valve for pressure gauges. Specifications: ●Mounting thread d1 x d2: PF3/8 x PT3/8 ●Total length (mm): 45 ●Nominal diameter (female x female): G3/8 x Rc3/8 ●Nominal diameter: G3/8 x Rc3/8 ●Maximum operating pressure: 0.98MPa ●Operating temperature: -10 to 80°C Materials/Finish: ●Body: Brass ●O-ring: Nitrile rubber (NBR.IA) ●Ball: C3604 + chrome plating ●Packing: Fluorine resin (PTFE) ●Handle: Stainless steel (SUS) (PVC coating)
