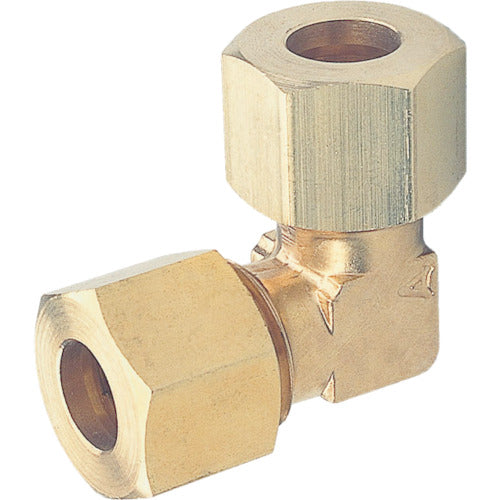

ASOH Ring Elbow PT1/2XΦ12.7 RL-1404 1 pc

ASOH Ring Elbow PT1/2XΦ12.7 RL-1404 1 pc

JAN：4571133550701 　
ASOH fittings Construction and lighting supplies Pipework Equipment Ring joint (for copper pipes) Small diameter pipe fittings
¥1,584
¥1,584
Sale Sold out
Shipping calculated at checkout.

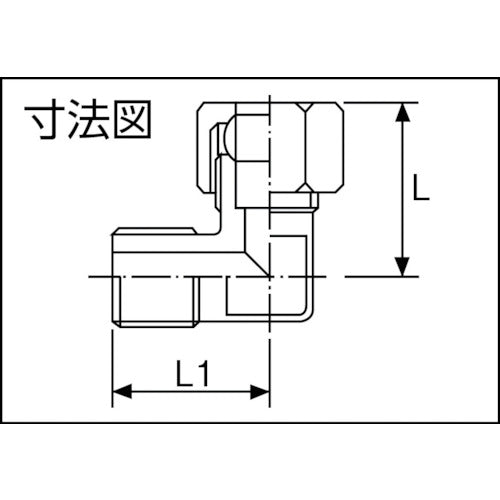

Catalog number: RL-1404 Features: ●For connecting copper pipes and screws Applications: ●Copper pipe fittings. Specifications: ●Applicable copper pipe outer diameter (mm): 12.7 ●Thread: R1/2 ●Hexagonal face size (mm): 24 ●Dimension L (mm): 37 ●Dimension (mm) L: 37 ●Dimension (mm) L1: 29 ●Fluid used: Water, air, oil ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 3.45MPa Material/Finish: ●Brass (C3604, C3771) Note: ●Not compatible with refrigerant gas.
