アソー（株）

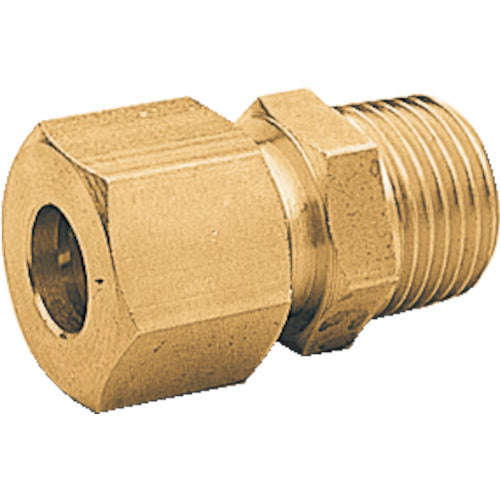

ASOH Ring Joint PT1/8XΦ8 RS-1108 1 piece

ASOH Ring Joint PT1/8XΦ8 RS-1108 1 piece

JAN：4571133550053 　
ASOH fittings Construction and lighting supplies Pipework Equipment Ring joint (for copper pipes) Small diameter pipe fittings
¥337
¥337
Sale Sold out
Shipping calculated at checkout.

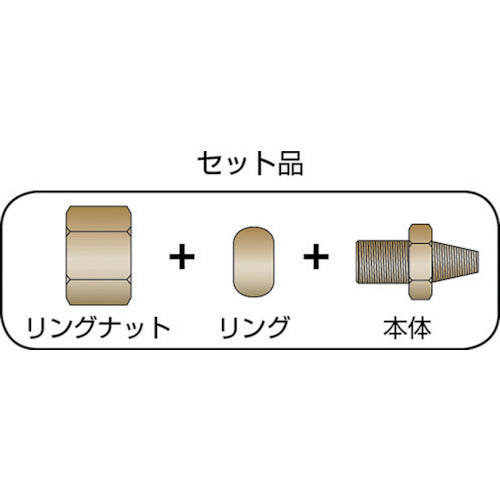

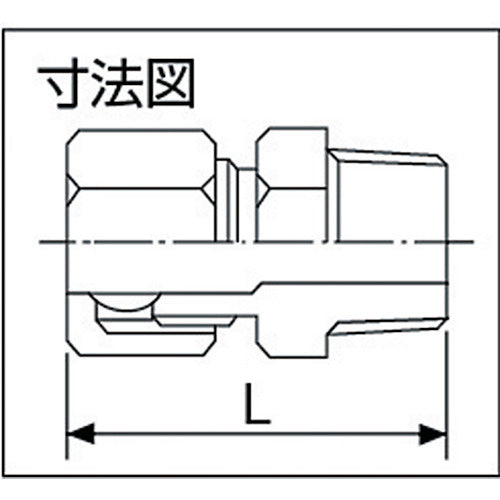

Catalog number: RS-1108 Features: ●Ring type fitting. ●Used to connect copper pipes and screws. Applications: ●Copper pipe fittings. Specifications: ●Applicable copper pipe outer diameter (mm): 8 ●Thread: R1/8 ●Hexagonal side (mm) nut: 17 ●Hexagonal side (mm) body: 14 ●Dimension L (mm): 31 ●Dimension (mm) L: 31 ●Fluid used: Water, air, oil ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 3.45MPa ●For connecting copper pipes and screws. Material/Finish: ●Brass (C3604) Caution: ●Not compatible with refrigerant gases.
