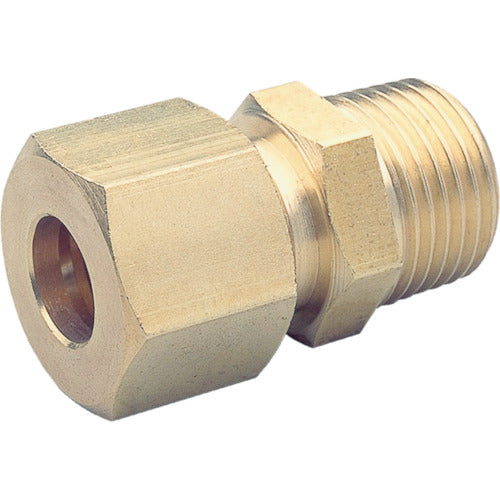

ASOH Ring Joint PT3/8XΦ9.53 RS-1303 1 pc

ASOH Ring Joint PT3/8XΦ9.53 RS-1303 1 pc

JAN：4571133550183 　
ASOH fittings Construction and lighting supplies Pipework Equipment Ring joint (for copper pipes) Small diameter pipe fittings
¥496
¥496
Sale Sold out
Shipping calculated at checkout.

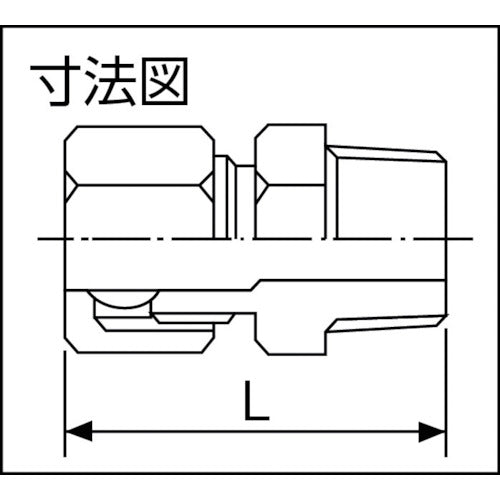

Catalog number: RS-1303 Use: Copper pipe fittings. Specifications: Compatible copper pipe outer diameter (mm): 9.53 Thread: R3/8 Hexagonal nut (mm): 21 Hexagonal body (mm): 17 Dimension L (mm): 38 Dimension L (mm): 38 Fluids used: water, air, oil Fluid temperature (℃): -50 to 150℃ Operating pressure: 3.45MPa For connecting copper pipes and screws. Material/Finish: Brass (C3604) Note: Not compatible with refrigerant gases.
