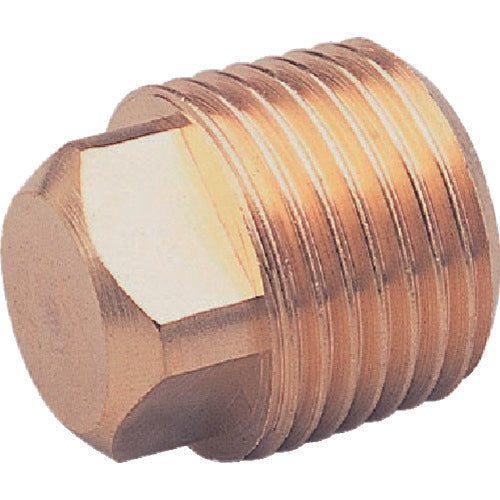

ASOH Square Plug PT3/8 (RoHS) NP-1003R 1 pc

Catalog number: NP-1003R Features: ●For use when internal thread piping is temporarily stopped. ●RoHS compliant. Applications: ●Fittings for threads. ●For temporary stoppage of internal thread piping. Specifications: ●Connection port size D: R3/8 ●Square face size (mm): 12 ●Type: Square plug ●Fluid used: Water, air, oil, and other materials that have no adverse effects. ●Dimensions (mm) A: 21 ●Dimensions (mm) B: 13 ●Fluid used: Water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 6.90MPa Material/Finish: ●Brass (C3604)
