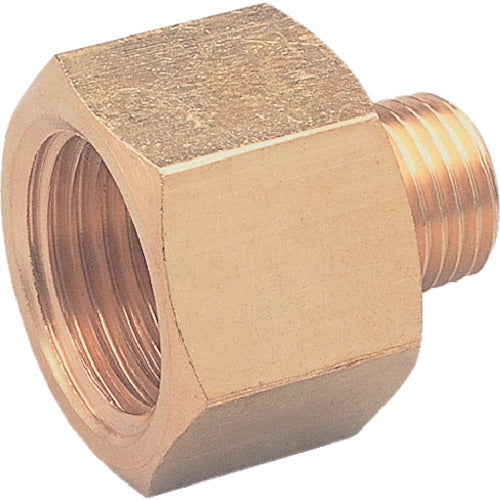

ASOH Different Diameter Inside and Outside Socket PT1/2 Outside x PT1/4 Inside NF-1042 1 pc

Catalog number: NF-1042 Features: ● For piping with different sizes of internal and external threads. Applications: ● Fittings for threads. Specifications: ● Connection diameter D: Rc1/4 ● Hexagonal face size (mm): 22 ● Maximum operating pressure (MPa): 6.90 ● Connection diameter D1: R1/2 ● Connection diameter D2: Rc1/4 ● Type: Different diameter internal and external socket ● Fluid used: Water, air, oil ● Dimensions (mm) B: 22 ● Dimensions (mm) A: 28 ● Thread: R1/2 x Rc1/4 ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass Note: ● Freight charges will be charged separately for direct shipping
