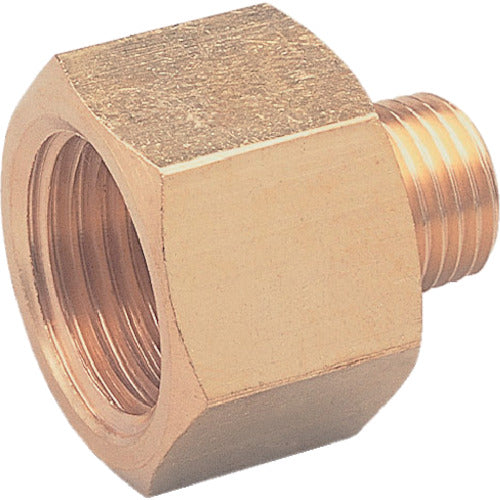

ASOH Different Diameter Inside and Outside Socket PT1/2 Outside x PT3/4 Inside NF-1046 1 pc

Catalog number: NF-1046 Features: ● Used to connect internal and external threads. Applications: ● Fittings for threads. Specifications: ● Connection diameter D: Rc3/4 ● Hexagonal face size (mm): 32 ● Maximum operating pressure (MPa): 6.90 ● Connection diameter D1: R1/2 ● Connection diameter D2: Rc3/4 ● Type: Different diameter internal and external sockets ● Fluids used: Water, air, oil ● Thread: R1/2 x Rc3/4 ● Dimensions (mm) B: 32 ● Dimensions (mm) A: 36 ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3604) Note: ● Freight charges will be charged separately for direct shipping
