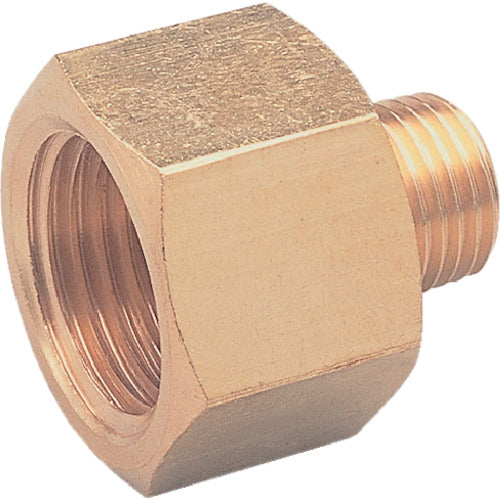

ASOH Different Diameter Inside and Outside Socket PT3/8 Outside x PT1/4 Inside NF-1032 1 pc

Catalog number: NF-1032 Features: ● Used to connect internal and external threads. Applications: ● Fittings for threads. Specifications: ● Connection diameter D: Rc1/4 ● Hexagonal face size (mm): 17 ● Maximum operating pressure (MPa): 6.90 ● Connection diameter D1: R3/8 ● Connection diameter D2: Rc1/4 ● Type: Different diameter internal and external sockets ● Fluids used: Water, air, oil ● Thread: R3/8 x Rc1/4 ● Dimensions (mm) B: 17 ● Dimensions (mm) A: 26 ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3604) Note: ● Freight charges will be charged separately for direct shipping
