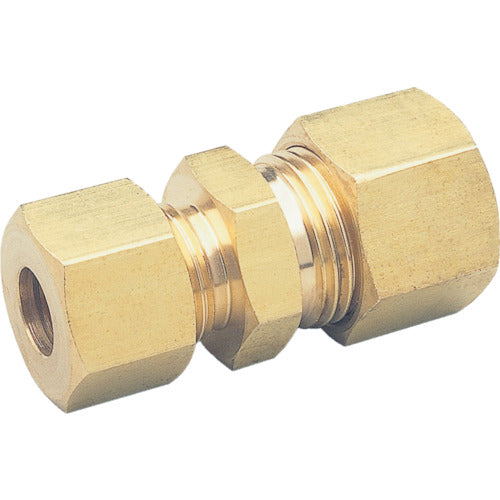

ASOH Copper pipe fitting, unequal diameter double-ended ring joint, Φ6 x Φ8, RE-0608, 1 piece
ASOH Copper pipe fitting, unequal diameter double-ended ring joint, Φ6 x Φ8, RE-0608, 1 piece
Regular price
¥545
Regular price
Sale price
¥545
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

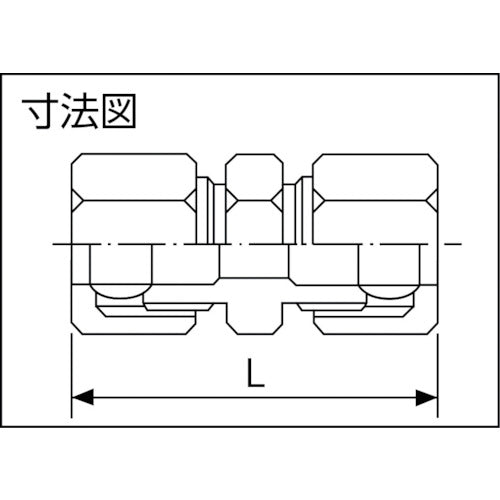

Catalog number: RE-0608 Uses: ●Copper pipe fittings. ●For connecting different copper pipe sizes. Specifications: ●Hexagonal side (mm) Nut A: 17 ●Hexagonal side (mm) Nut B: 17 ●Hexagonal side (mm) Body: 14 ●Dimension L (mm): 41 ●Applicable copper pipe outer diameter A (mm): 6 ●Applicable copper pipe outer diameter B (mm): 8 ●Dimension (mm) L: 41 ●Usable fluid: Water, air, oil ●Fluid temperature: -50 to 150°C ●Usable pressure: 3.45MPa Material/Finish: ●Brass (C3604) Note: ●Not compatible with refrigerant gas.
