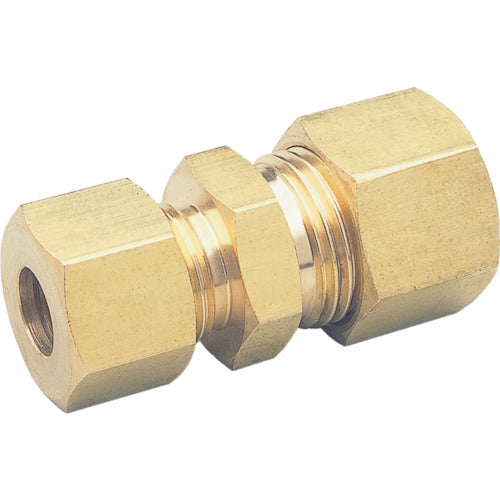

ASOH Copper pipe fitting, unequal diameter double-ended ring joint, Φ8 x Φ10, RE-0810, 1 piece

ASOH Copper pipe fitting, unequal diameter double-ended ring joint, Φ8 x Φ10, RE-0810, 1 piece

JAN：4571133552088 　
ASOH fittings Construction and lighting supplies Pipework Equipment Ring joint (for copper pipes) Small diameter pipe fittings
¥822
¥822
Sale Sold out
Shipping calculated at checkout.

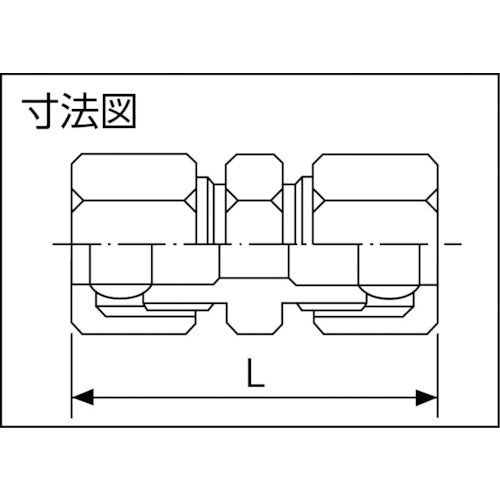

Catalog number: RE-0810 Uses: ●Copper pipe fittings. ●For connecting different copper pipe sizes. Specifications: ●Hexagonal side (mm) Nut A: 17 ●Hexagonal side (mm) Nut B: 21 ●Hexagonal side (mm) Body: 17 ●Dimension L (mm): 44 ●Applicable copper pipe outer diameter A (mm): 8 ●Applicable copper pipe outer diameter B (mm): 10 ●Dimension (mm) L: 44 ●Usable fluid: Water, air, oil ●Fluid temperature (℃): -50 to 150℃ ●Usable pressure: 3.45MPa Material/Finish: ●Brass (C3604) Note: ●Not compatible with refrigerant gas.
