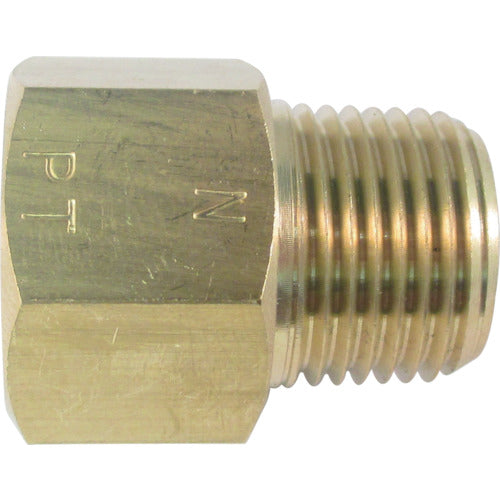

ASOH Brass conversion socket, external NPT3/4 x internal PT3/4, NF-3166R, 1 piece

Catalog number: NF-3166R Features: ●For converting NPT (American thread) external threads to PT internal threads ●RoHS compliant Uses: ●For converting NPT (American thread) external threads to PT internal threads Specifications: ●Connection diameter D: PT3/4 ●Hexagonal face size (mm): 32 ●Maximum operating pressure (MPa): 6.90 ●Connection diameter D1: NPT3/4 ●Connection diameter D2: Rc3/4 ●Type: Internal and external socket ●Usable fluid: Water, air, oil, and other materials that have no adverse effects. ●Fluid temperature (℃): -50 to 150℃ ●Usable pressure: 6.90MPa Material/Finish: ●Brass (C3604 cadmium 75ppm or less)
