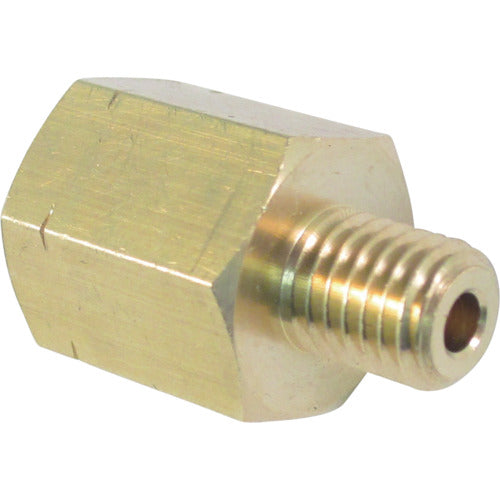

ASOH Brass conversion socket, external UNF1/4-28 x internal PT1/8, NF-3281R, 1 piece

Catalog number: NF-3281R Features: ●For converting external UNF 1/4-28 threads to internal PT 1/8 threads ●RoHS compliant Uses: ●For converting external UNF 1/4-28 threads to internal PT 1/8 threads ●For removing grease nipples (lubrication fittings) and piping hydraulic hoses Specifications: ●Connection diameter D: PT1/8 ●Hexagonal face size (mm): 12 ●Maximum operating pressure (MPa): 6.90 ●Connection diameter D1: 1/4-28UNF ●Connection diameter D2: Rc1/8 ●Type: Internal and external sockets ●Fluids used: Water, air, oil, and other materials that have no adverse effects. ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 6.90MPa Material/Finish: ●Brass (C3604 cadmium 75ppm or less)
