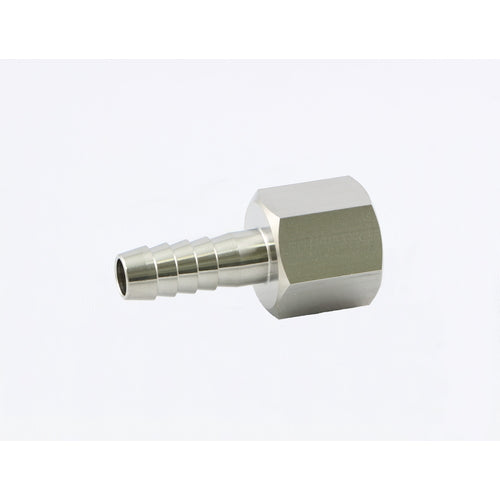

ASOH SUS internal thread hose nipple PT3/8 x Φ10.5 HF-7310 1 pc

Catalog number: HF-7310 Features: ●For connecting hoses and screws Applications: ●Fittings for hoses. ●For connecting hoses and screws. Specifications: ●Connection diameter D: Rc3/8 ●Hexagonal face size (mm): 22 ●Maximum operating pressure (MPa): 3.45 ●Connection diameter (bamboo shoot outer diameter) (mm): 10.5 ●Type: Internal thread hose nipple ●Operating fluid: Water, air, oil ●Height (mm): 49 ●Operating fluid: Water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 3.45MPa Material/Finish: ●Body: Stainless steel (SUS304)
