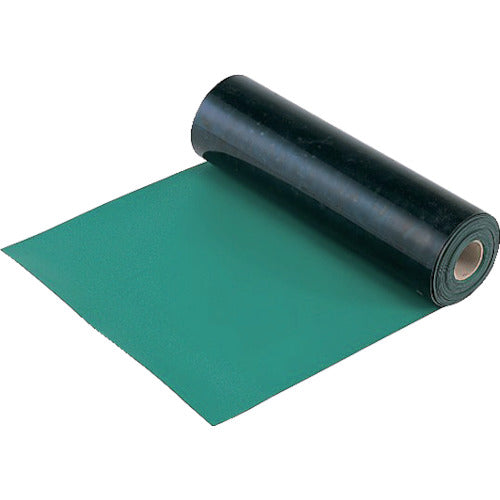

AS ESD sheet CCBP1212GR 1-4255-05 1 roll

Catalog number: 1-4255-05 Features: ● Two layers of static electricity diffusion rubber and conductive rubber provide excellent static electricity countermeasures. ● Resistant to oil, grease, and general solvents. ● Can reduce 20,000 volts to a harmless level in seconds. Applications: ● Places where static electricity problems are expected. Specifications: ● Color: Green ● Width (mm): 1200 ● Thickness (mm): 2 ● Length (m): 10 ● Surface resistance (front): 10 [8-10th power] Ω ● Surface resistance (back): 10 [4-5th power] Ω Material/Finish: ● Surface: Static electricity diffusion nitrile rubber ● Back: Conductive nitrile rubber Note: ● Earth wire sold separately.
