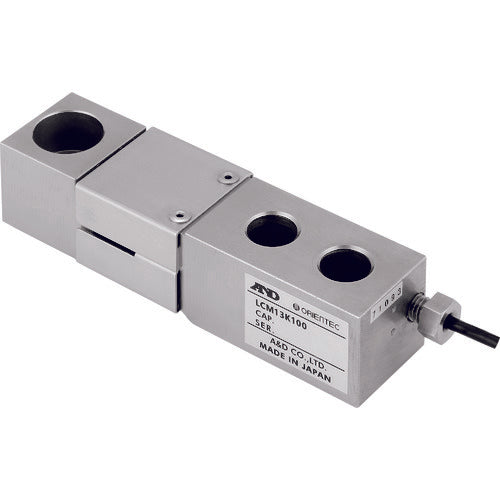

A&D All stainless steel beam type load cell LCM13K100 LCM13K100 1 unit

Catalog number: LCM13K100 Features: ● All-stainless steel load cell for platform scales, hoppers, and tanks. ● Ideal for building platform and tank scales that require corrosion resistance. ● Can be used for both tension and compression, and is easy to install. ● Dustproof and waterproof: IP67. Specifications: ● Rated capacity (kN): 1kN (102.0kg) ● Rated output: 2mV/V±0.1% ● Allowable overload: 150% of RC ● Limit overload: 200% of RC ● Total error: 0.03% of RO ● Recommended applied voltage: DC5-12V ● Zero balance: ±1% of RO ● Maximum applied voltage: DC15V ● All-stainless steel beam-type load cell LCM13K100 Set contents/accessories: ● Instruction manual
