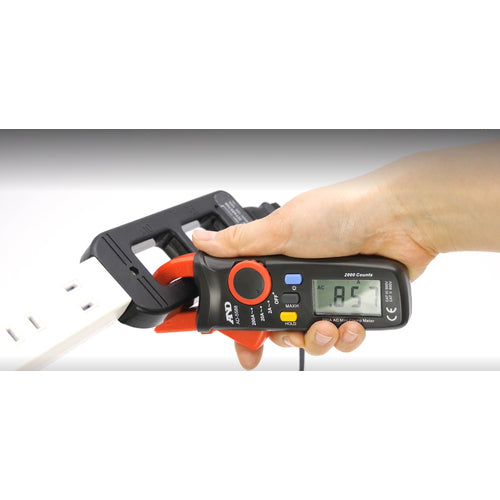

Catalog number: AD-5588 Features: ● A small mini clamp meter that can measure AC currents up to 200Arms. Applications: ● For measuring currents in narrow spaces and electrical equipment. Specifications: ●AC current (A): 2 / 20 / 200 ●Power supply (V): 2 AAA batteries ●Width (mm): 158 ●Depth (mm): 33.5 ●Height (mm): 60 ●●Clip inner diameter: Approx. Φ16mm ●Over-input display: OL ●Sampling: Approx. 3 times / second ●Maximum input current: 200Arms ●Resolution and accuracy for each range: [2.000A range] Resolution 1mA, accuracy ± (4%rdg + 30dgts) [20.00A range] Resolution 10mA, accuracy ± (3%rdg + 20dgts) [200.0A range] Resolution 100mA, accuracy ± (2.5%rdg + 20dgts) ●Operating temperature and humidity range: 0℃ to 30℃ 75% RH or less (no condensation) / 30℃ to 40℃ 40% RH or less (no condensation) / 2000m or less above sea level ●1999 power mount LCD display Set contents/accessories: ●Instruction manual, batteries (for monitor)
