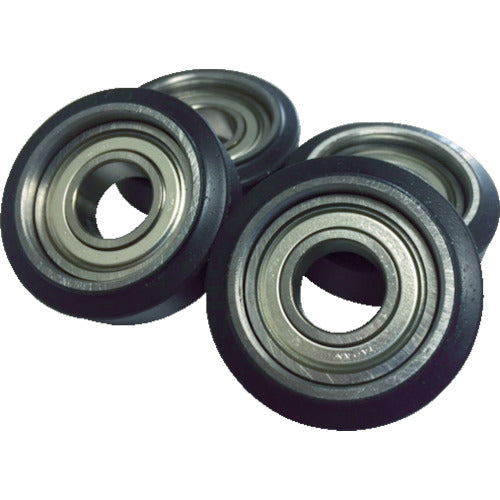

BANDO Bancoran Bearing Heavy Load (L400) 30 x 85 x 23 L400-BB85-6306ZZ 1 pc

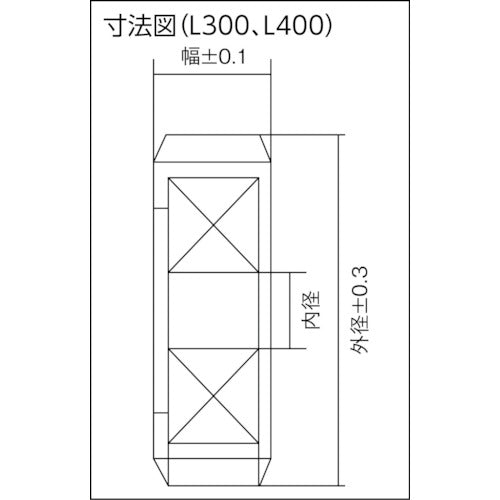

Catalog number: L400-BB85-6306ZZ Features: ●This type has a load capacity that is approximately 3.7 times higher than the light load type. ●Since there is little deformation relative to the load (load), running resistance can be reduced. ●Compared to metal rollers, it is wear-resistant and quieter. ●We also offer a friction type that uses low-hardness polyurethane to increase grip. Applications: ●Office document transport equipment, chain conveyor equipment, etc. ●For large-scale transport mechanisms such as sorting and assembly lines. Specifications: ●Bearing: 6306ZZ ●Inner diameter (mm): 30 ●Outer diameter (mm): 85 ●Width (mm): 23 ●Estimated load (N): 912 to 1865 ●Operating temperature range: -20 to 70°C Materials/Finish: ●Bearing: Steel ●Outer circumference: Polyurethane Note: ●The estimated load is a radial load that the bearing can run for 3000 hours without damage at room temperature, without the influence of oil, solvents, water, etc., and without uneven load, impact load, or thrust load.
