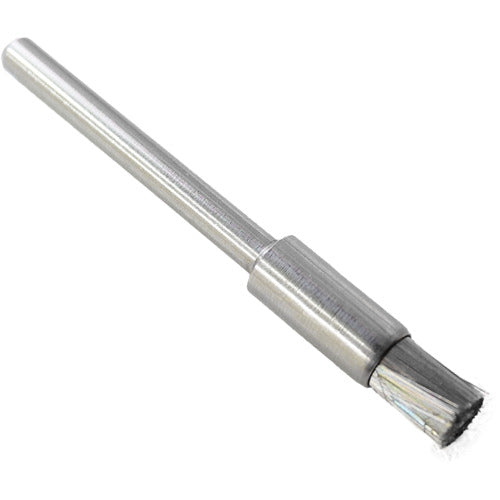

BURRTEC Wyler Miniature End Brush SUS 0.07 ME-879 SUS P5 12650400 1 bag

Catalog number: 12650400 Features: ● Flexible brushing with flexible movement! Ideal for surface finishing ● Destructive testing is conducted based on the US national standard (ANSI) and the maximum rotation speed is set. ● Supports high speed rotation ● Durable ring structure ● Uniform bristles distribution ● Wide range of materials ● RoHS Directive (2011/65/EU), RoHS Directive ((EU)2015/863) compliant product Applications: ● For polishing dies and removing oxide films from machine parts. ● For removing micro burrs from various parts. ● For intermediate finishing after grinding after dental laboratory work. ● For polishing and finishing electronics-related die processing and die processing. ● For polishing and finishing jewelry decoration processing. ● For polishing test pieces. Specifications: ● Wire diameter (mm): 0.07 ● Bristle material: Stainless steel ● Outer diameter (mm): 5 ● Bristle length (mm): 6.35 ● Shaft length (mm): 30 ● Shaft diameter (mm): 3.0 ● Maximum operating speed (rpm): 37000 ● Total length (mm): 44.45 ● Compatible tools: Micro grinder, drill, automatic machine Material/Finish: ● SUS: Stainless steel wire (brush material) Caution: ● Please select the type of machine and the type of power brush that are appropriate for the purpose of use (application). Using a model other than the compatible model or using it for purposes other than the intended purpose may lead to accidents and is dangerous. Do not use for purposes other than the intended purpose. ● Check the maximum allowable rotation speed (circumferential speed) printed on the package, label, catalog, and other related documents, and use within the allowable range. Never use it beyond this. ● When operating the power brush, be sure to wear a brush protection cover, gloves, safety helmet, dust-proof tight-fitting protective glasses, and a mask for safe work. ● Generally, when using a power brush, burrs, scale, dirt, slag, etc. are thrown out with considerable force along with the filament (broken wire), so keep anything that is easily flammable, explosive, or damaged away from the area. Also, wear clothing that covers your skin so that the grinding dust does not come into direct contact with your hands and feet. ● If the wire brush filament (broken wire) or grinding dust scatters, it can be dangerous, so people in the vicinity of the work site (within 15m of the brush) should also wear protective glasses and clothing while working. (As a consideration for people in the vicinity other than the worker, install curtains, or instruct people to keep out or block off the area.)
