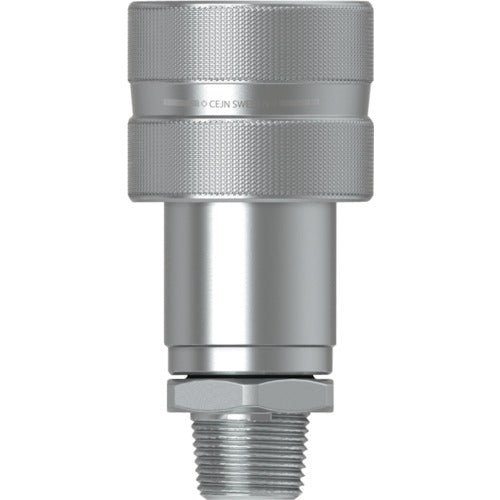

CEJN Series 232 Screw Type Coupling with Poppet Valve Nominal Size 10mm NPT3/8 Male Thread 10-232-1494 1 pc

Catalog number: 10-232-1494 Features: ●Can be connected under pressure. ●Large flow rate, high durability. ●Comes with a poppet valve that provides a larger flow rate than the standard type. Applications: ●Hand pumps, cylinders, jacks, etc. Specifications: ● Maximum operating pressure (MPa): 72 ● Counterpart mounting size: NPT3/8 female thread ● Nominal diameter (ND): 10mm ● Fluid used: Hydraulic oil ● Minimum burst pressure (when connected) (MPa): 216 ● Minimum burst pressure (when coupling is separated) (MPa): 185 ● Minimum burst pressure (when nipple is separated) (MPa): 150 ● Flow rate: 35L/min ● Hexagonal side (mm): 24 ● Length (mm): 72 ● Outer diameter (mm): 35 ● Operating temperature range: -30 to 100°C ● Screw type ● ISO 14540 standard ● With poppet valve Material/Finish: ● Body: Steel (plated) ● Sealing rubber: Nitrile rubber (NBR) Note: ● Dust caps are sold separately. ● Compatible with products that comply with the ISO 14540 standard. ● Please use nipples with the same nominal diameter (10mm).
